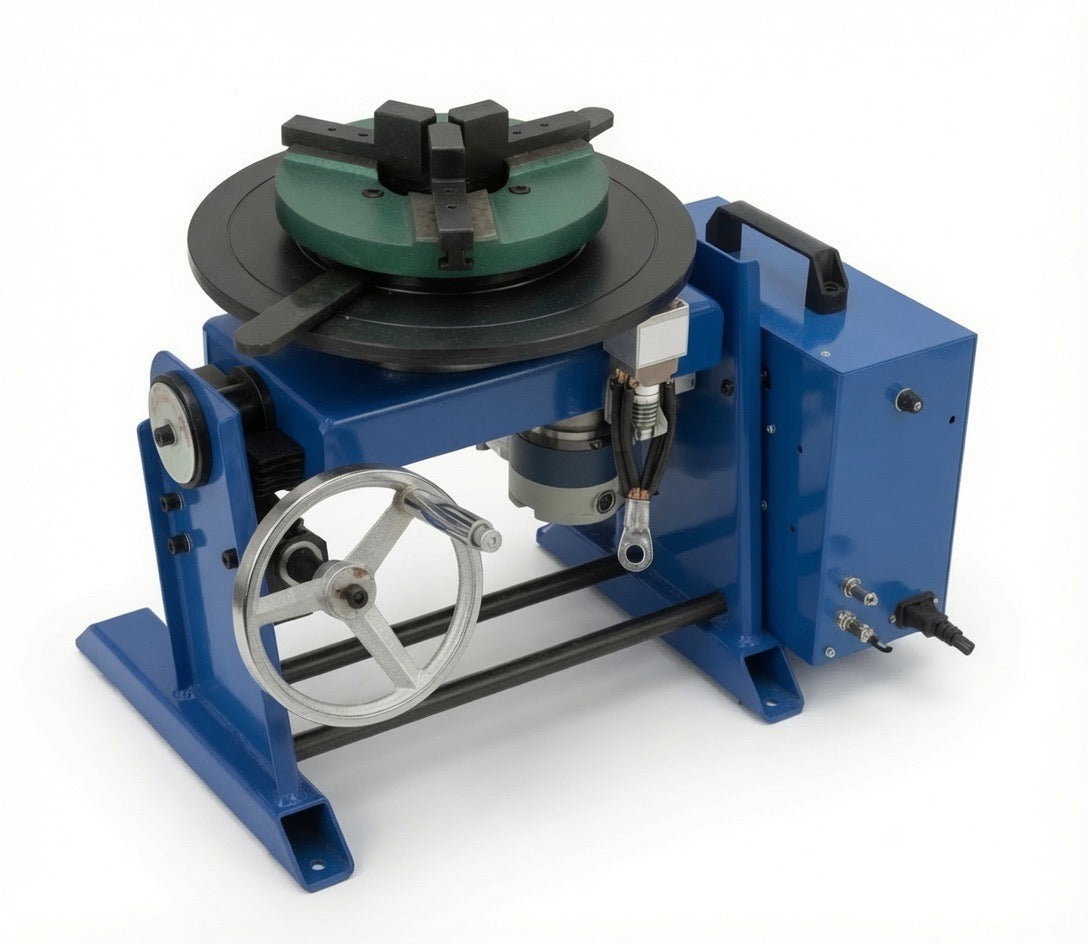

Rotary Welding Positioner – 200mm Chuck 1–12 RPM 30kg Load

This rotary welding positioner is designed for smooth, stable, and precise operation. Powered by a high-quality 70W motor with an adjustable speed range of 1–12 RPM, it handles up to 30 kg horizontally or 15 kg vertically with ease. Perfect for improving welding efficiency and accuracy.

This unit has been tested and is ready to ship. Video of it in operation is available, please ask. Please note due to the weight (approx 40kgs) it will be shipped in 3 seperate packages (controller & foot pedal, main frame, chuck).

Features

• Smooth, controlled rotation – 1–12 RPM adjustable speed for consistent results.
• Heavy-duty capacity – Supports 30 kg horizontal and 15 kg vertical loads.
• Large chuck – 200 mm three-jaw chuck with 20–210 mm clamping range.
• Spacious table – 310 mm diameter worktable with center hole for versatility.
• Adjustable angle – Tilts manually from 0–90° and locks securely in place.

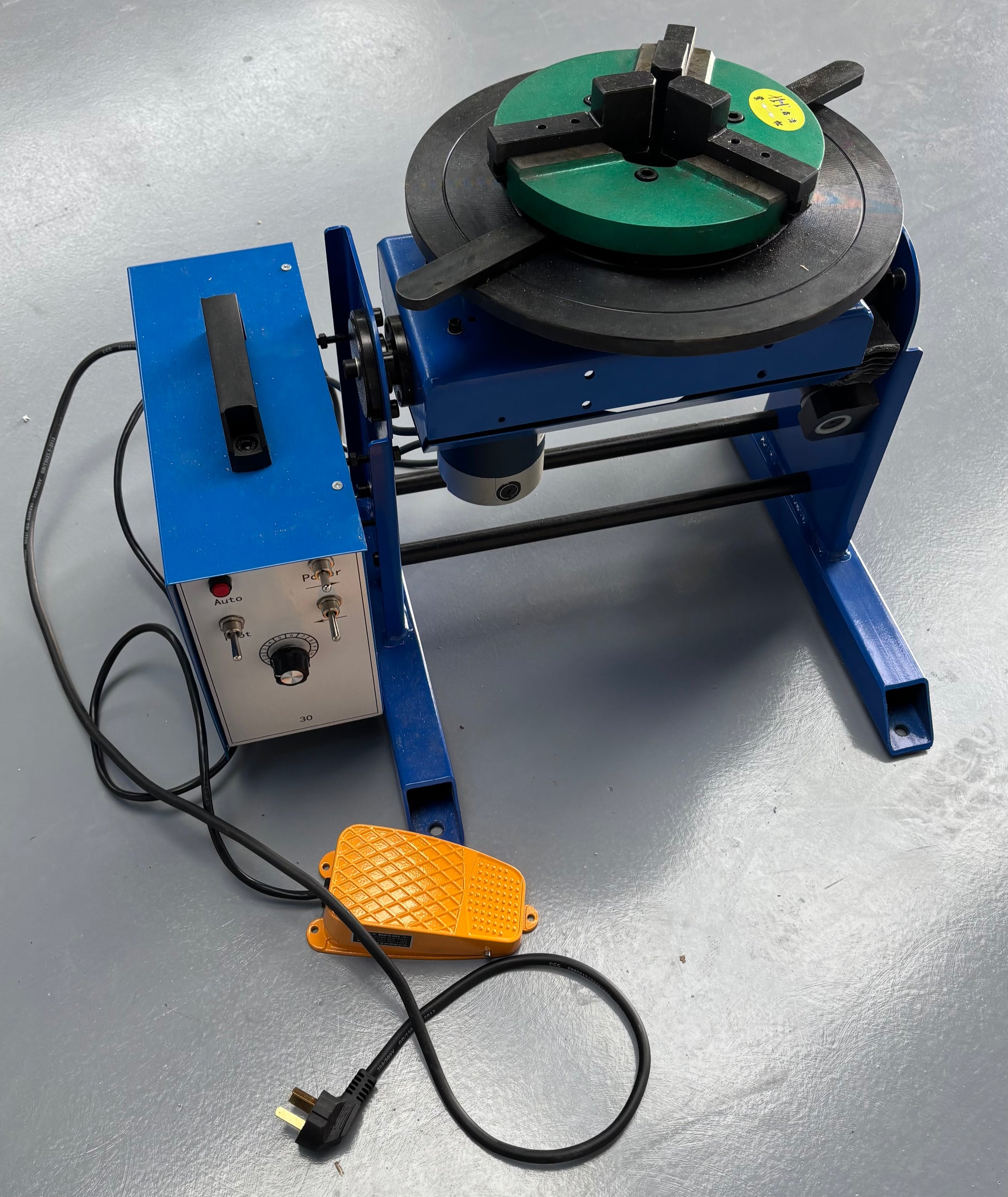

• Simple operation – Flick a switch to change from controlling the speed via the speed control knob to the foot pedal control.
• Compact & robust – 380×360×400 mm dimensions, steel frame built for durability.

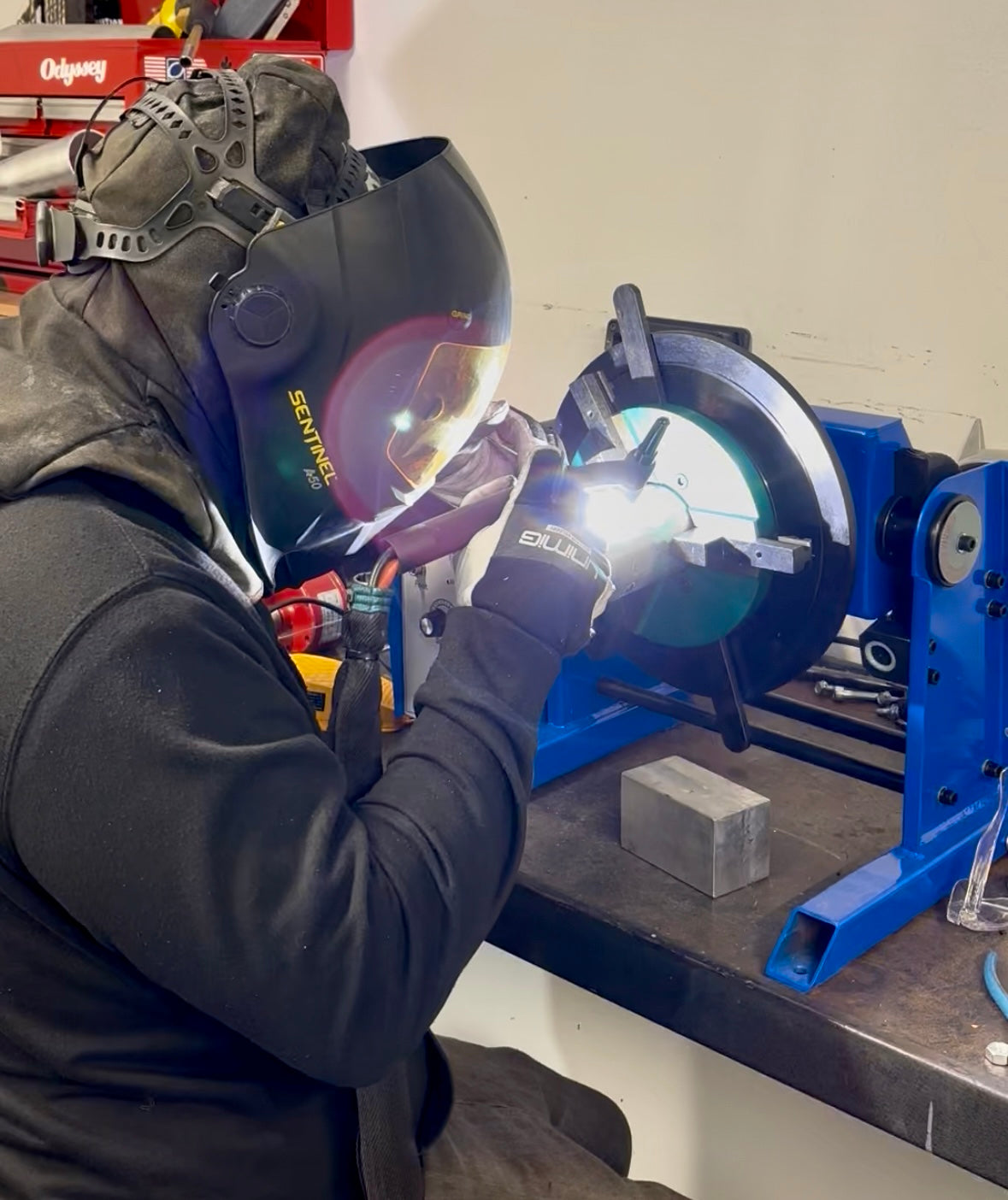

Ideal for welding, cutting, grinding, assembly, and testing.
