Timed Rotary Welding Positioner – 200mm Chuck 1–12 RPM 30kg Load MIG Holder

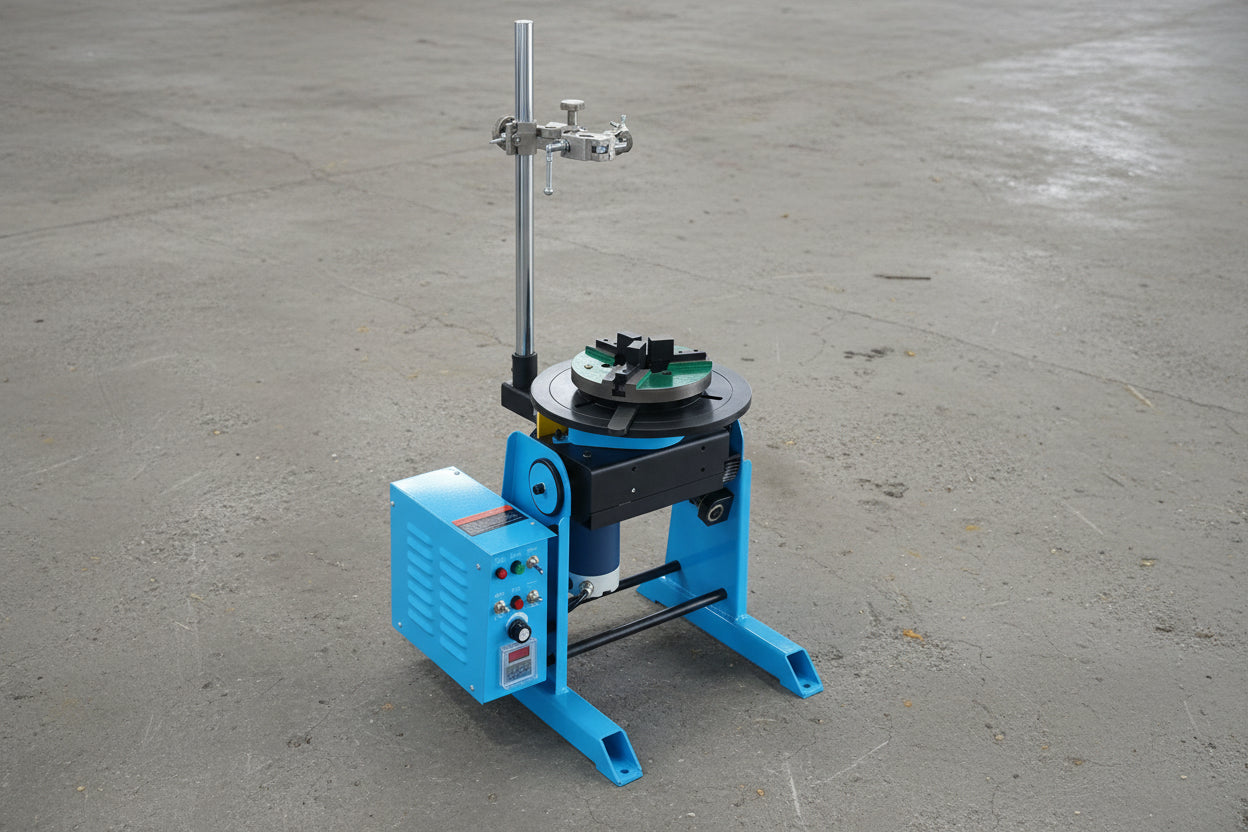

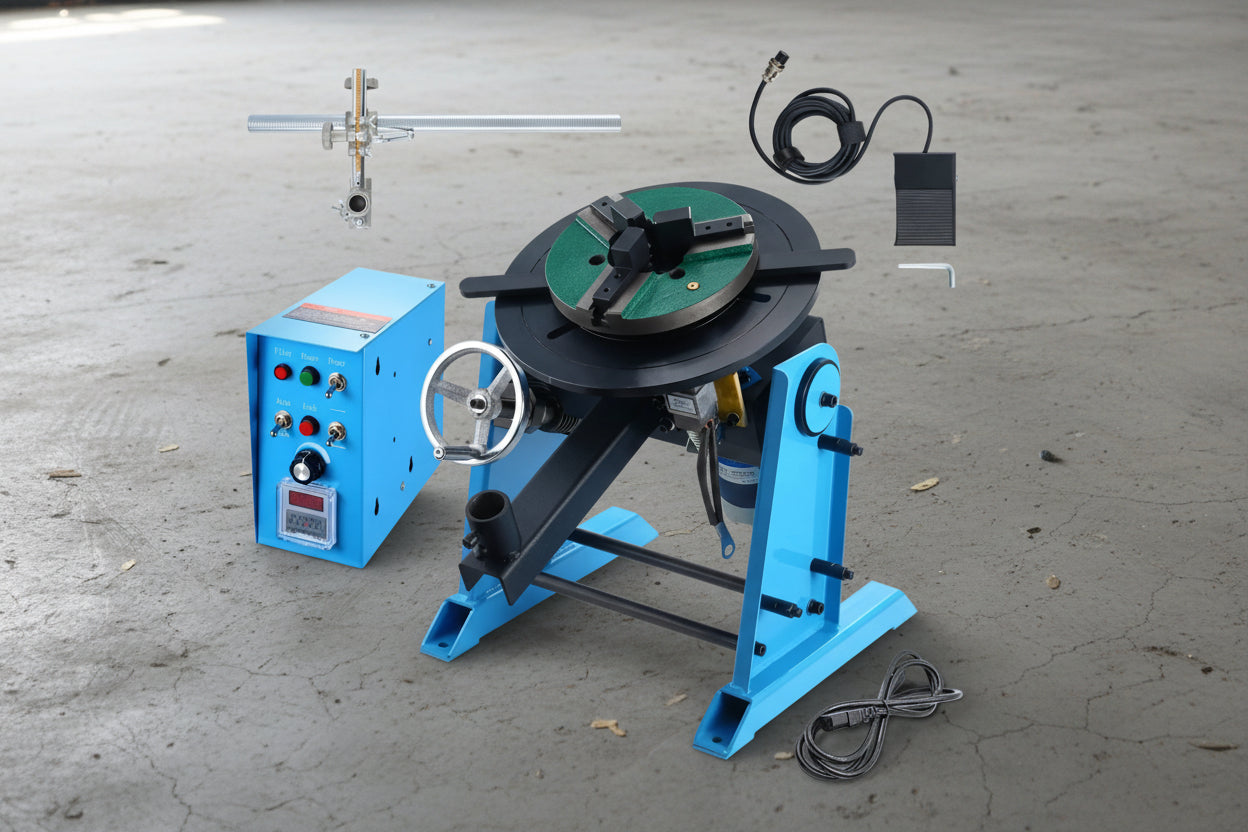

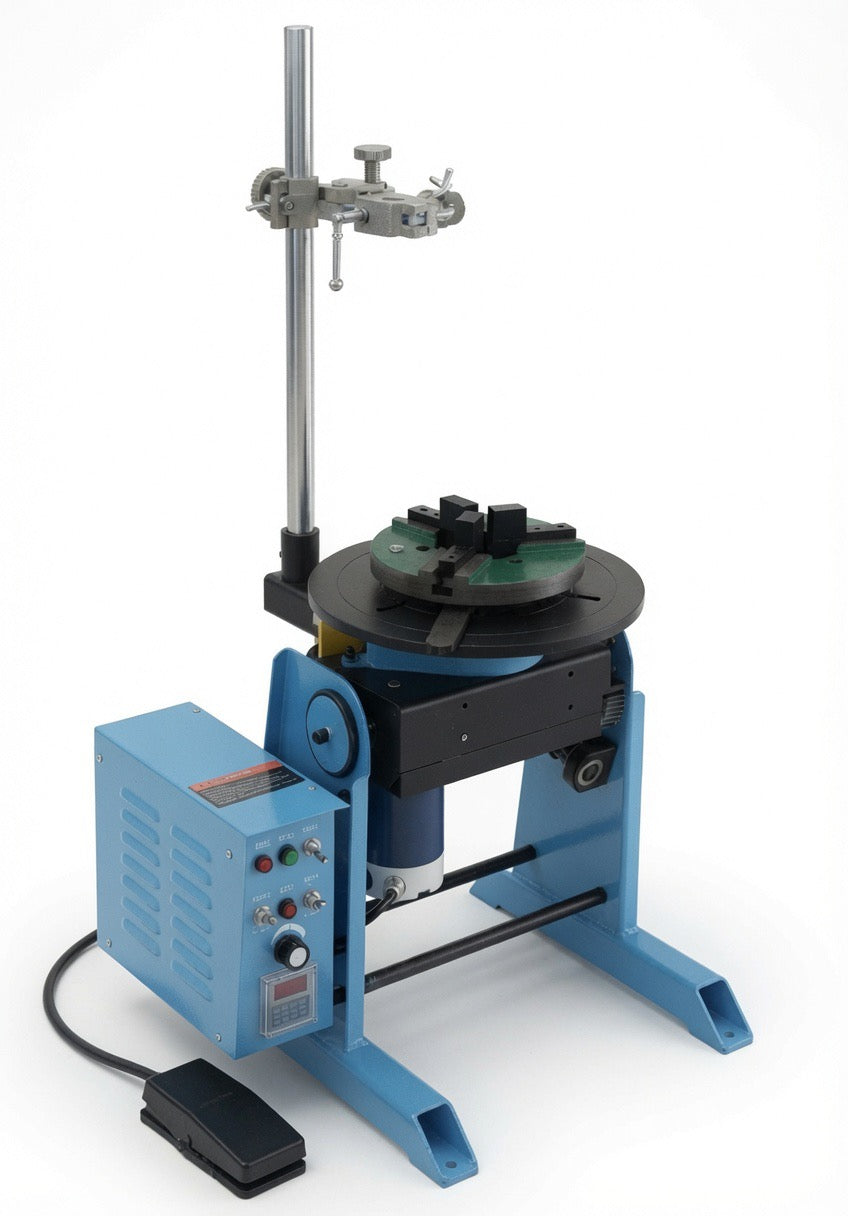

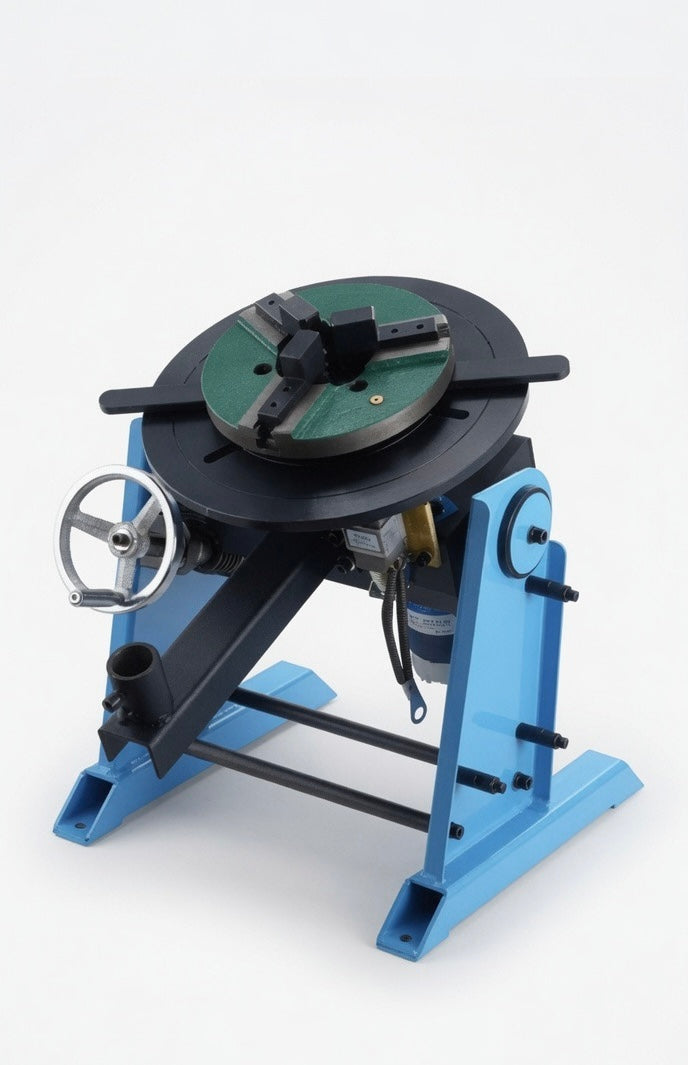

Rotary Welding Positioner – 200mm Chuck 1–12 RPM 30kg Load – With Timer & MIG Gun Holder

This upgraded rotary welding positioner includes a built-in timer function and adjustable MIG gun holder, making it ideal for repeat welds, production runs, and hands-free operation.

Powered by a high-quality 70W motor with adjustable speed control from 1–12 RPM, it delivers smooth, stable, and consistent rotation. Rated for 30 kg horizontal or 15 kg vertical load capacity, it’s perfect for small to medium fabrication work.

The timer function allows you to set controlled rotation time for repeatable weld cycles — ideal for circular welds and batch jobs. The adjustable MIG torch holder keeps your gun steady for consistent results and reduced fatigue.

This unit has been tested and is ready to ship. Video of it operating is available on request.

Please note: due to the weight (approx 45 kg), it will be shipped in a large wooden crate. The freight company will unload and pallet jack it into place.

Specifications:

• Smooth controlled rotation – 1–12 RPM adjustable speed
• Built-in timer – Set rotation duration for repeat welds
• MIG gun holder – Adjustable torch bracket for hands-free welding
• Heavy-duty capacity – 30 kg horizontal / 15 kg vertical
• Large chuck – 200 mm three-jaw chuck (20–210 mm clamping range)
• Large table – 310 mm diameter worktable with centre hole
• Adjustable tilt – 0–90° manual tilt with secure locking
• Dual control mode – Speed knob or foot pedal operation
• Motor – 70W DC motor
• Dimensions – 380 × 360 × 400 mm
• Weight – Approx 45 kg
• Steel frame construction

Ideal for fabrication workshops, hobbyists, automotive work, exhaust fabrication, pipe welding, and repeat production jobs.

If you have any questions about setup or suitability for your application, feel free to ask.
