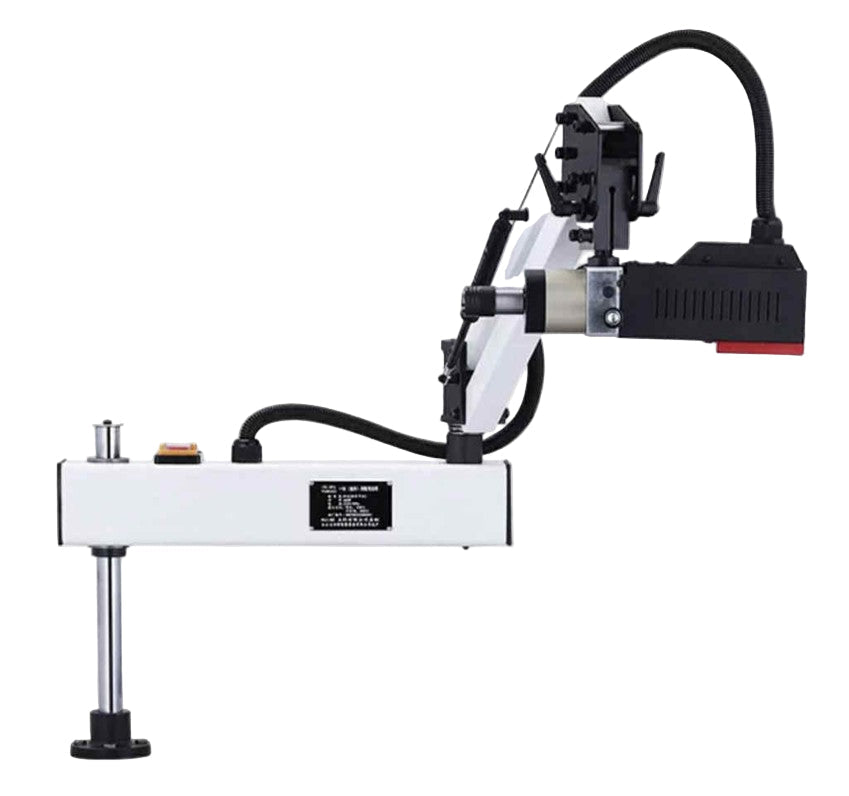

Thread Tapping Arm 2kW 2.7HP – Metric / Imperial – Horizontal Vertical

High-power servo-driven thread tapping arm designed for fast, accurate, and repeatable tapping across a huge range of Metric and Imperial thread sizes. The 2kW (2.7HP) motor delivers strong torque with smooth variable-speed control, and the arm can be used horizontally or vertically for maximum versatility.

The controller includes built-in programs for Metric and Imperial threads, automatic depth control, live torque monitoring, and a real-time torque graph so you can spot issues before breaking a tap. With a 1.1m working radius and 0–375RPM speed range, it’s ideal for fabrication shops, engineering workshops, and production environments. You can even set up your own custom thread program!

Comes with tap collets, tools, and lubrication bottles — ready to work.

Specifications:

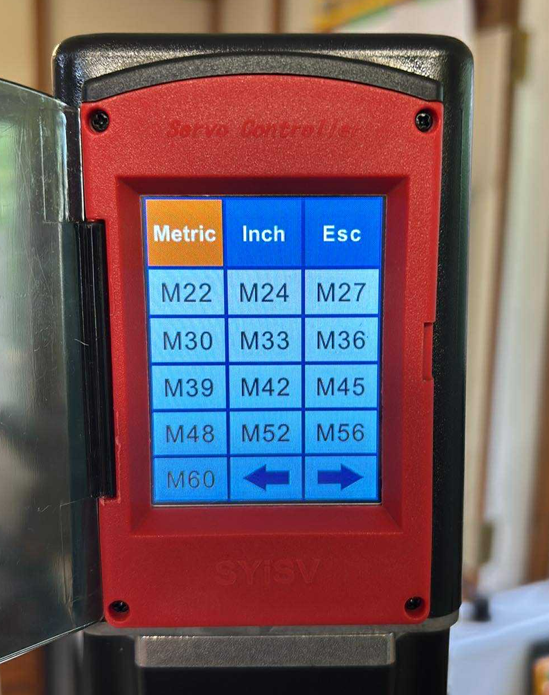

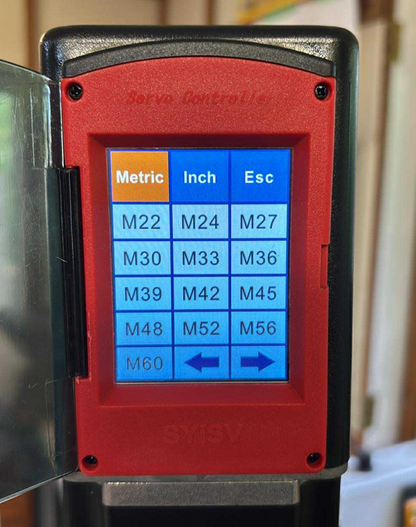

(Note programs available to select up to M60 however the range for this model is M2-M16 and 1/8" to 5/8")

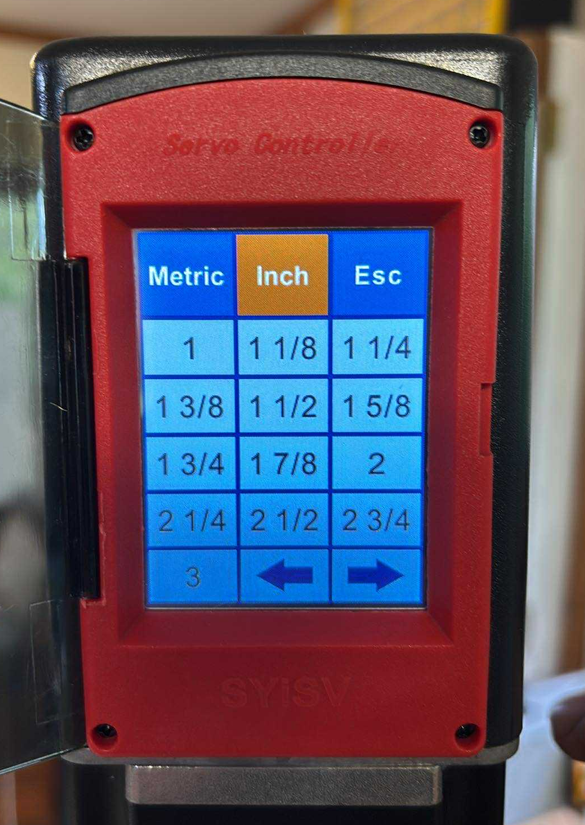

Threads Programs:

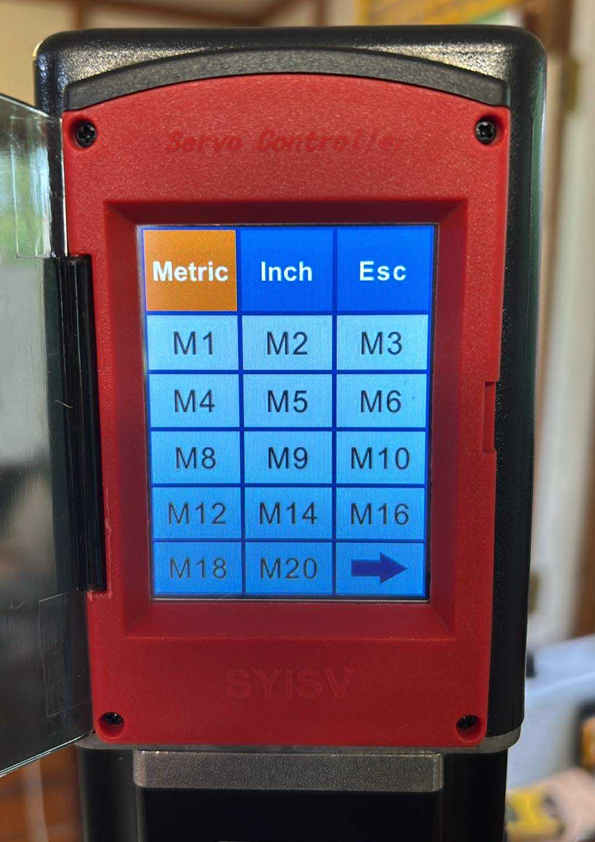

Metric: M2 – M16

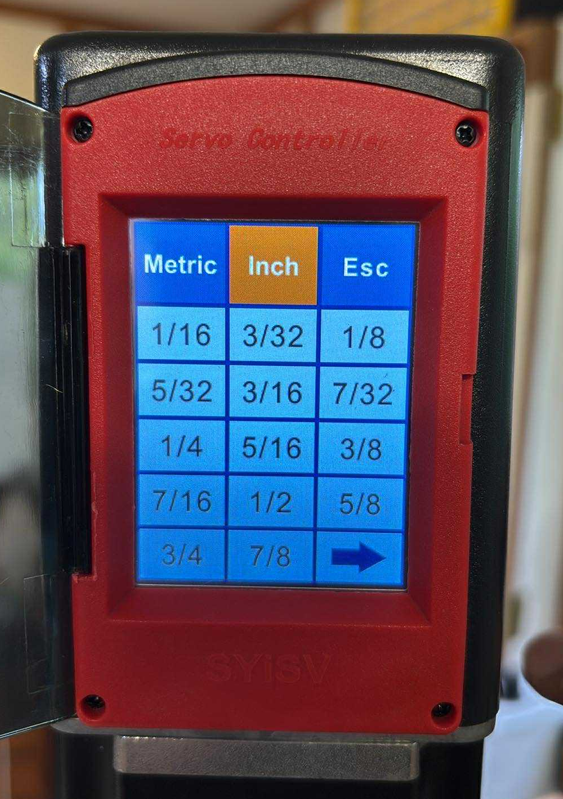

Imperial: 1/8" to 5/8"

Custom thread programming is possible via the controller.

Performance:

Motor Power: 2000W (2kW / 2.7HP)

Speed Range: 0–375 RPM

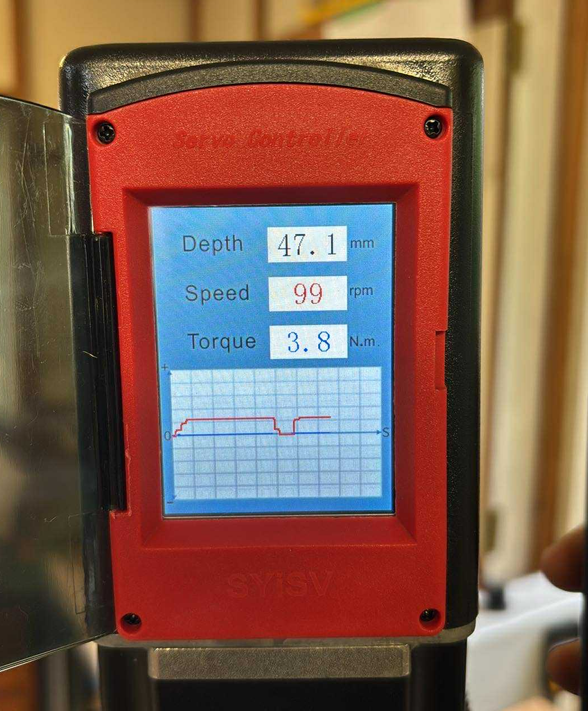

Torque Monitoring: Live torque (Nm) + real-time torque graph

Depth Control: Digital depth display during tapping

Working Radius: 1.1m

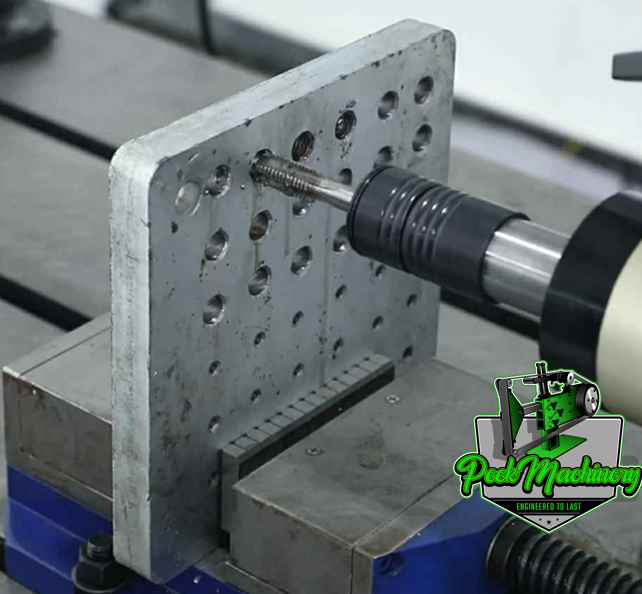

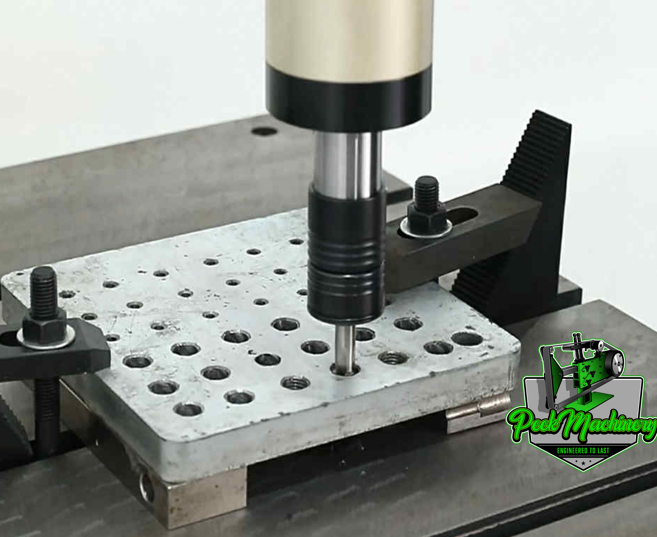

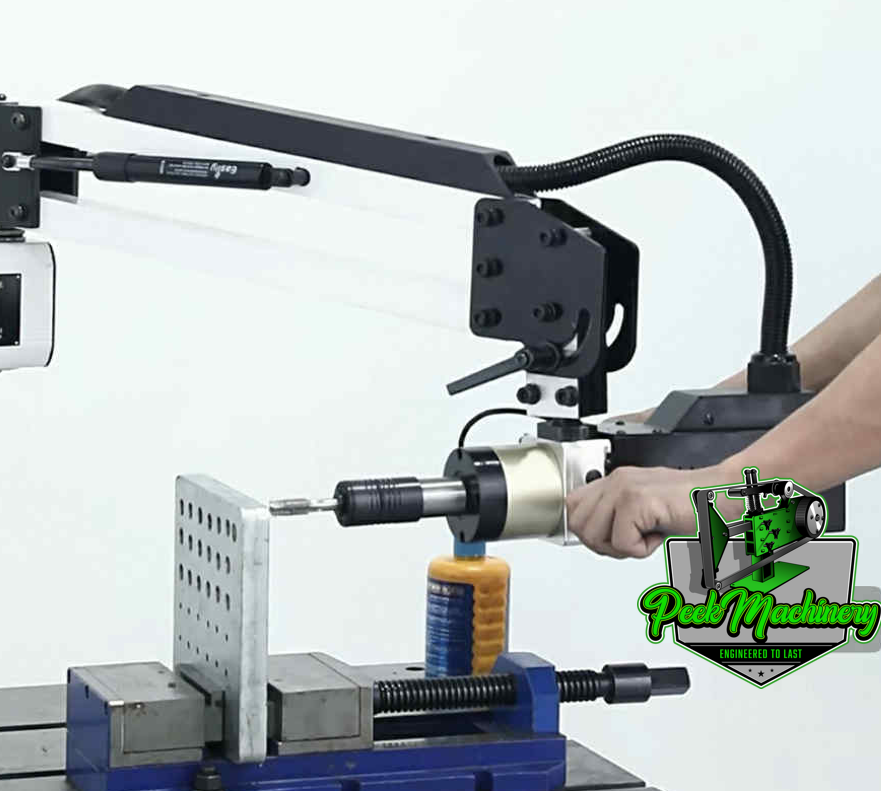

Operating Modes: Horizontal & Vertical

Voltage: 220V

Accessories Included:

8× tap collets

Handle

Tool kit

2× lubrication bottles

Machine Details:

Weight: 27kg

Brand/Controller: Peek Machinery

Mounts to standard welding tables and fixture tables

Suitable For:

Engineering workshops

Fabrication shops

Production lines

Steel, aluminium, plastics

High-volume or precision tapping
