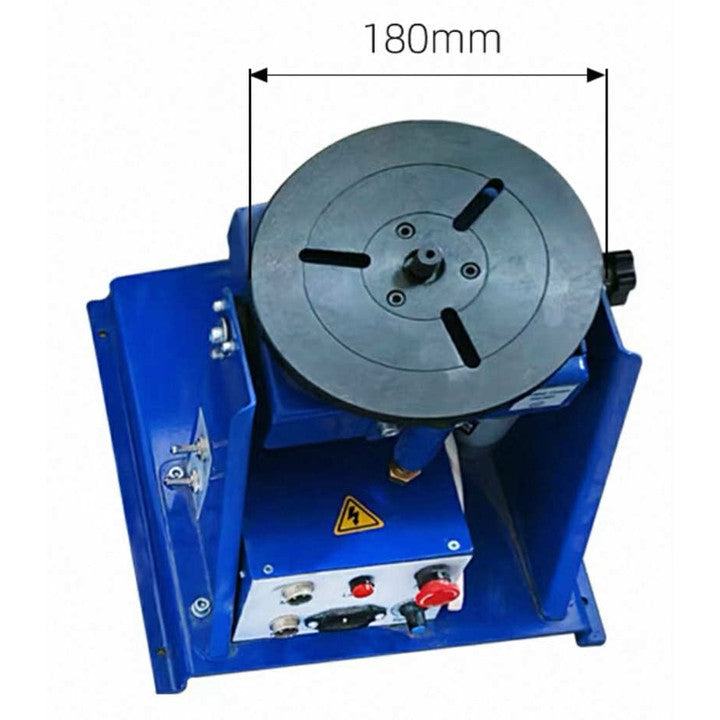

Rotary Welding Positioner – 180mm Chuck - 1–10 RPM - 10kg Load

High-quality rotary welding positioner designed for precise, stable, and efficient welding. Features smooth low-speed rotation, stepless speed control, a tiltable worktable, and a solid three-jaw chuck for secure clamping. Ideal for TIG/MIG work, fabrication, cutting, grinding, assembly, and more.

Can be bench-mounted or paired with welding automation setups.

Specifications:

• Motor Power: 20W
• Rotation Speed: 1–10 RPM (stepless control)

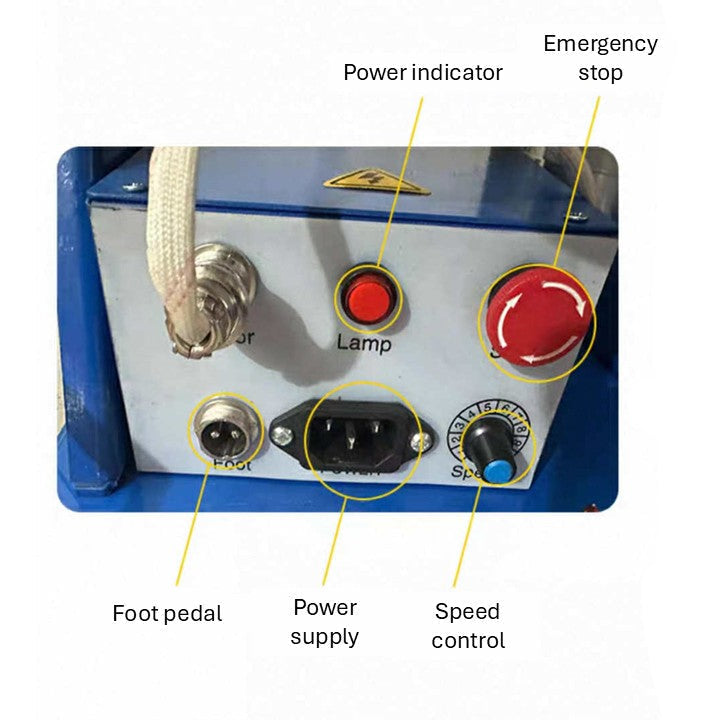

• Foot Pedal: On/off control for rotation • Load Capacity: 5kg vertical / 10kg horizontal

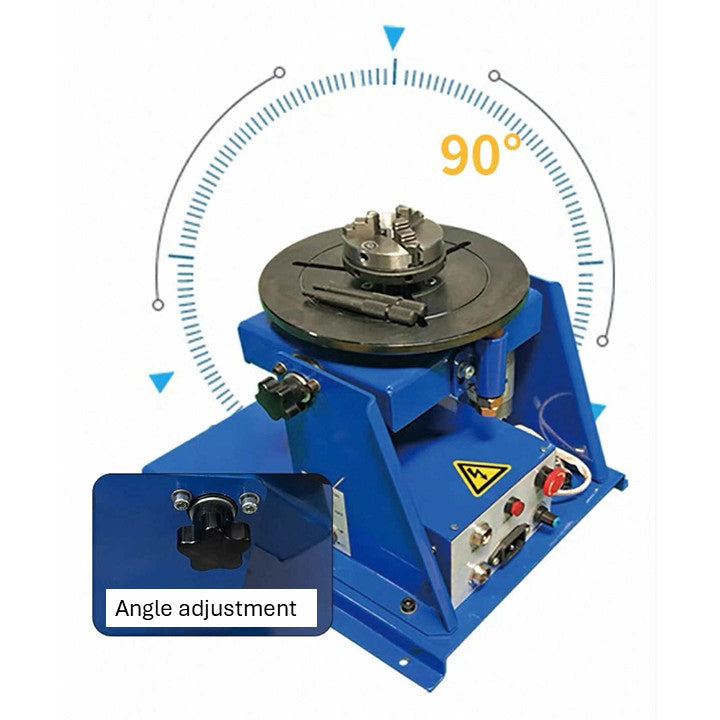

• Worktable Tilt: 0–90° with locking butterfly bolt
• Chuck: 205mm K01-63 3-jaw
• Clamping Range: 2–58mm
• Supporting Range: 22–50mm
• Drive System: Worm gear with self-locking function
• Applications: Welding, cutting, grinding, assembly, testing
• Mounting: Bench or tooling
• Single phase
