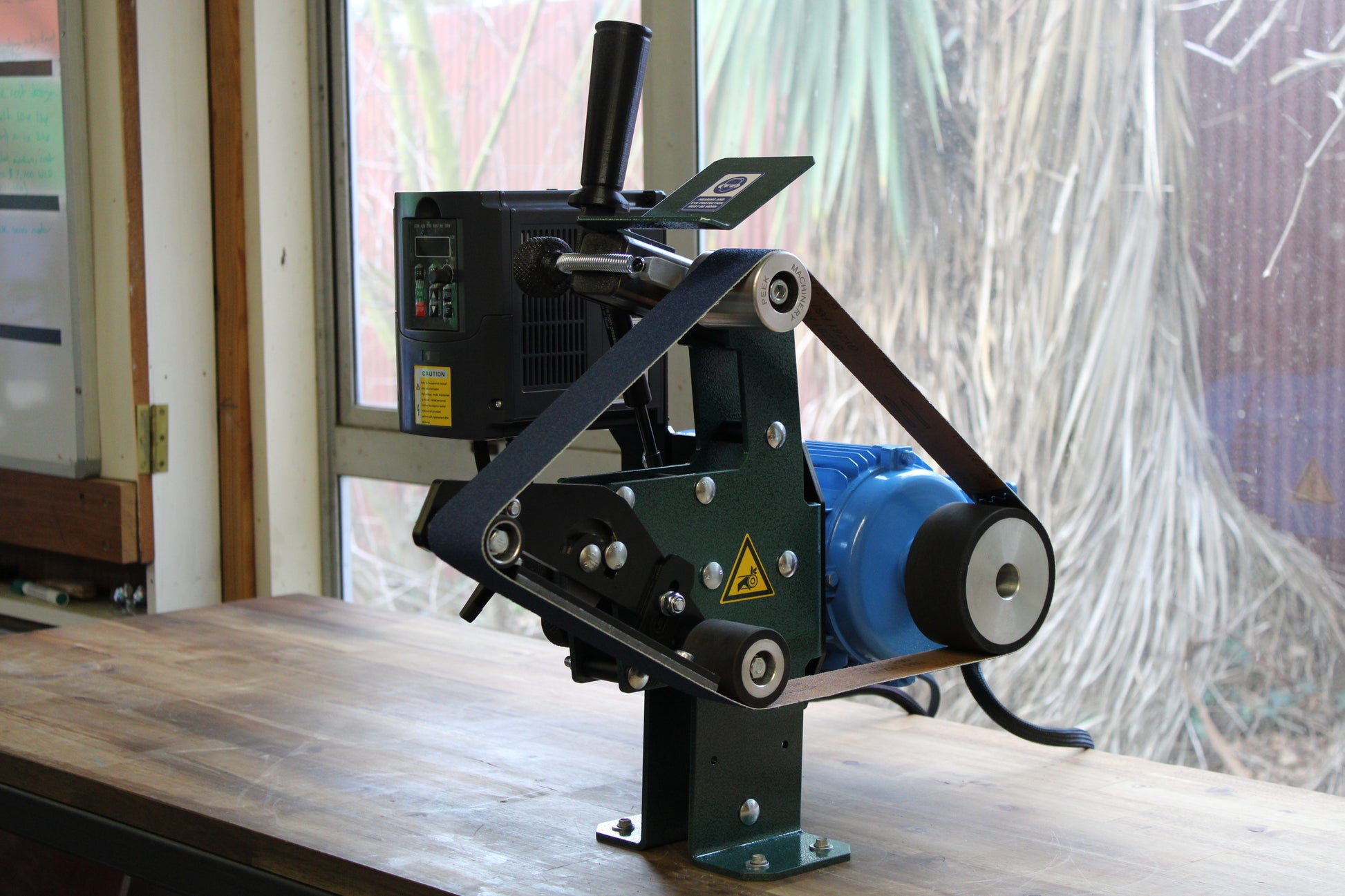

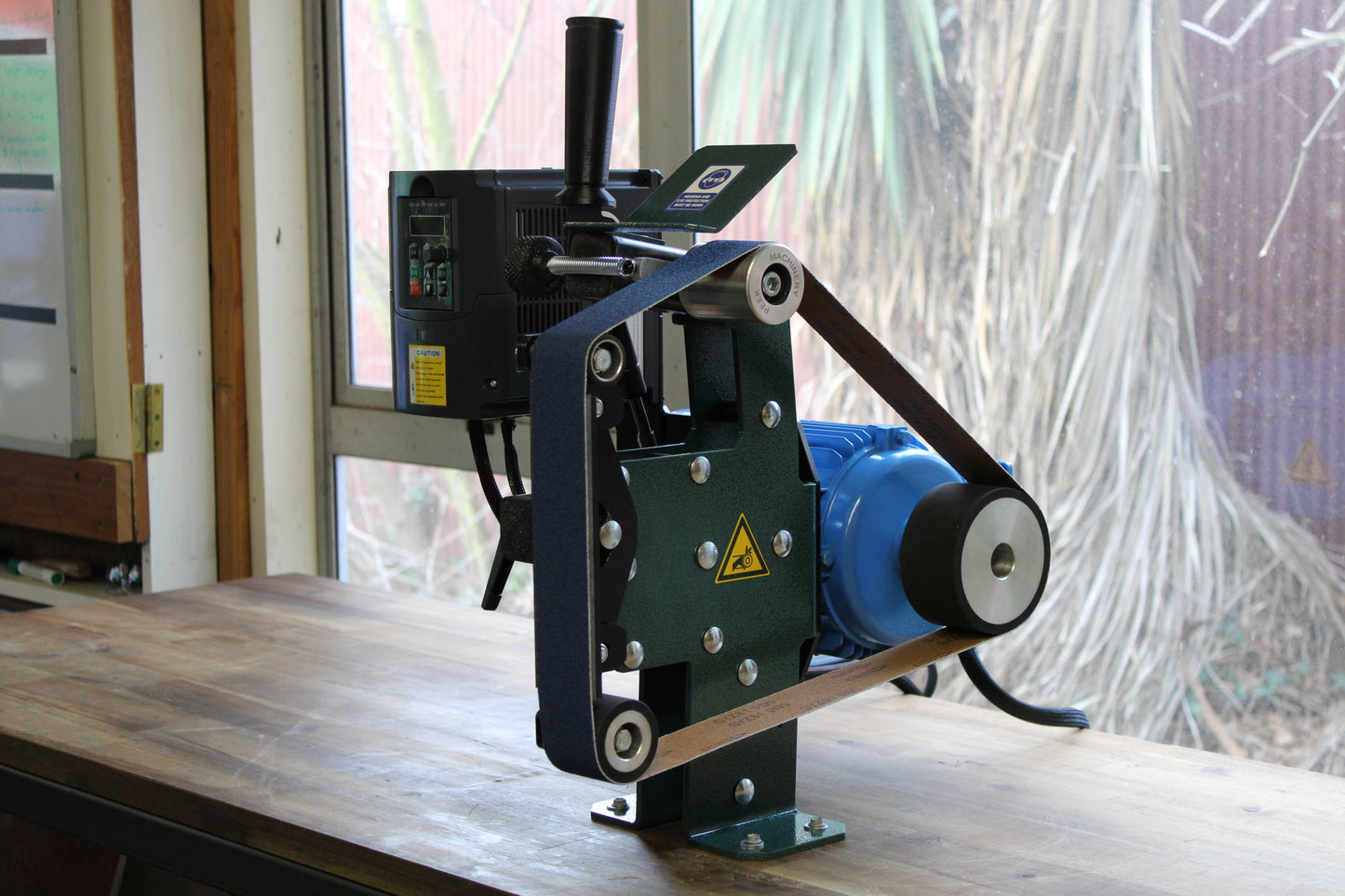

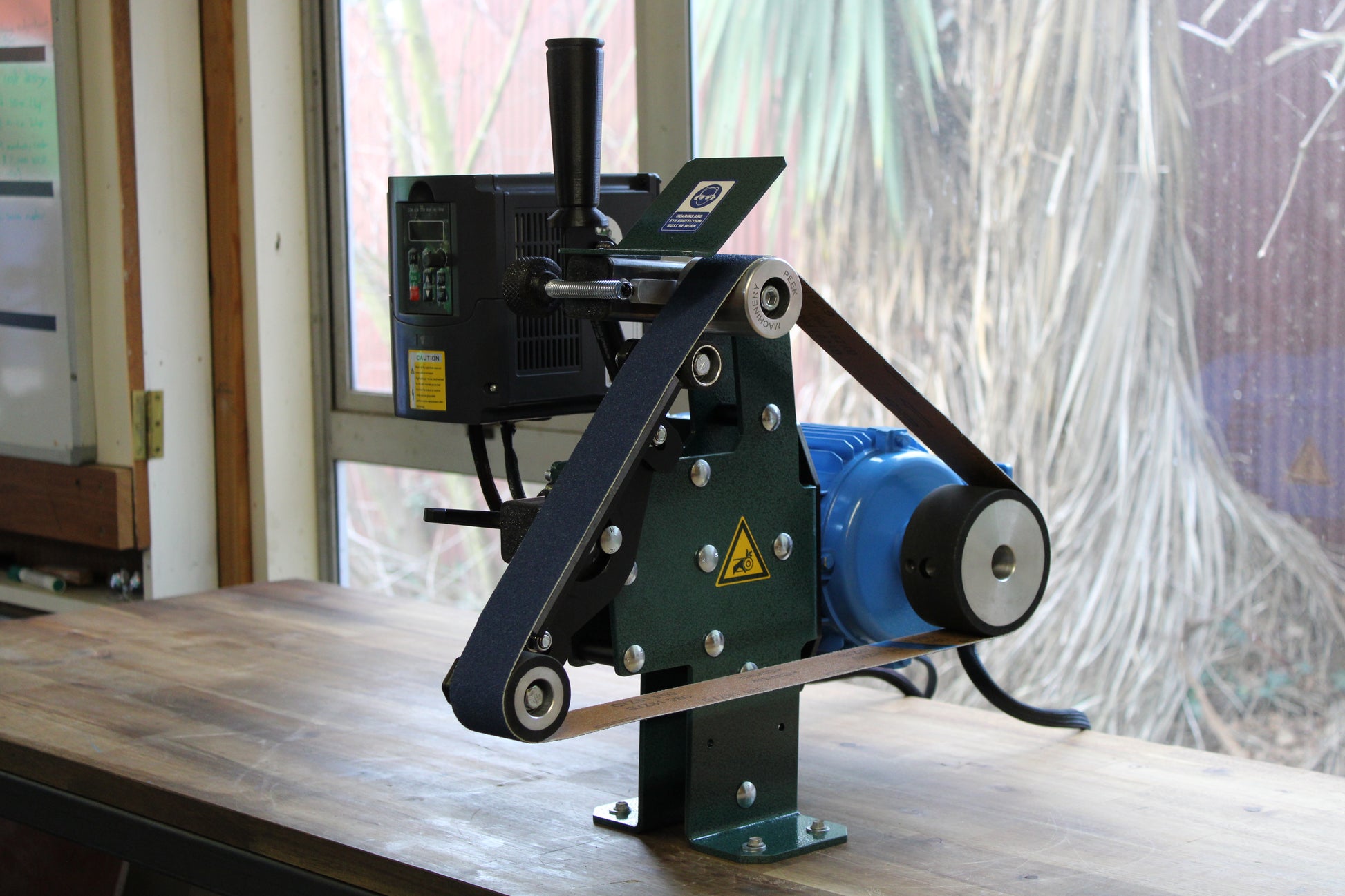

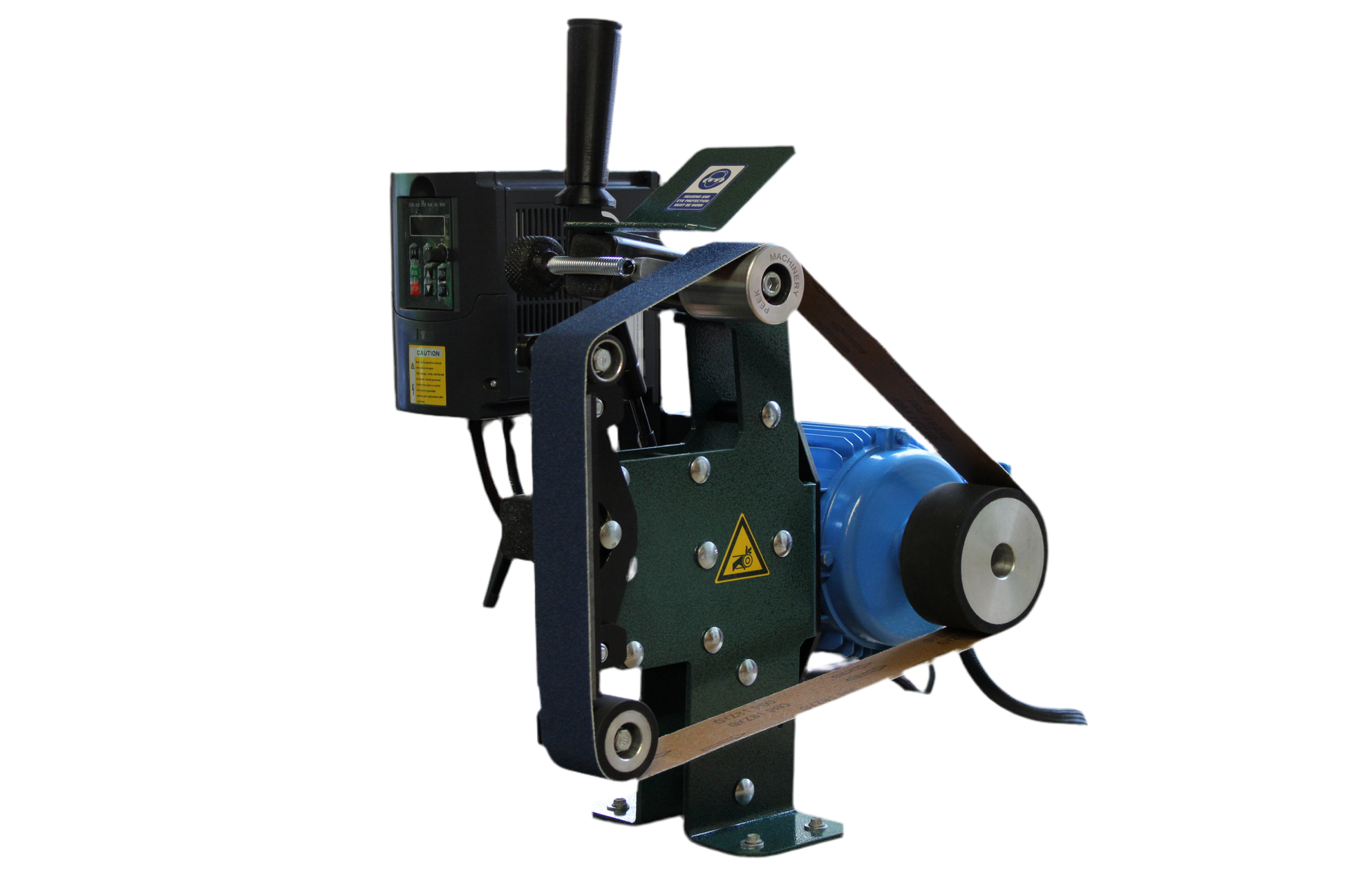

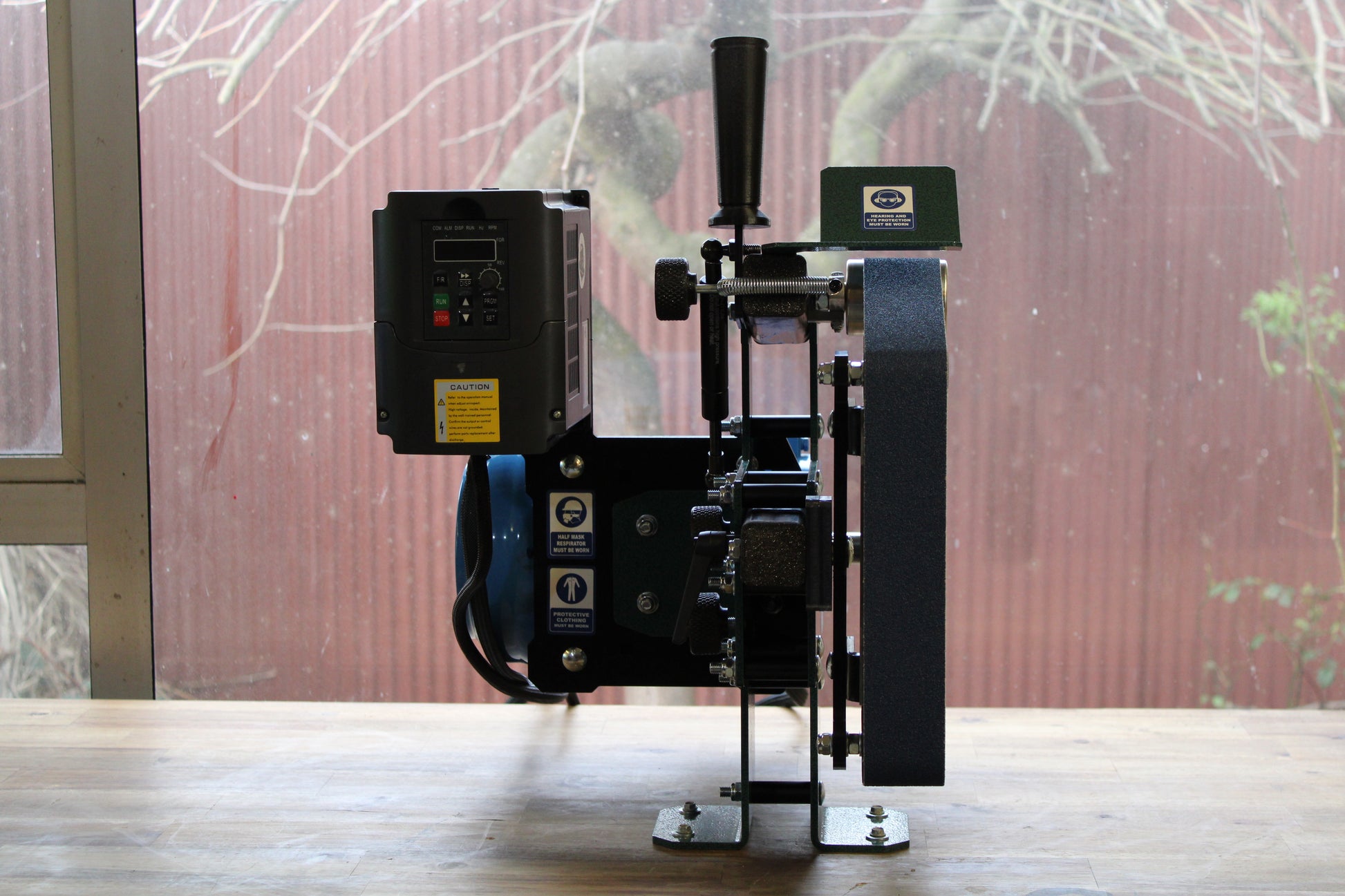

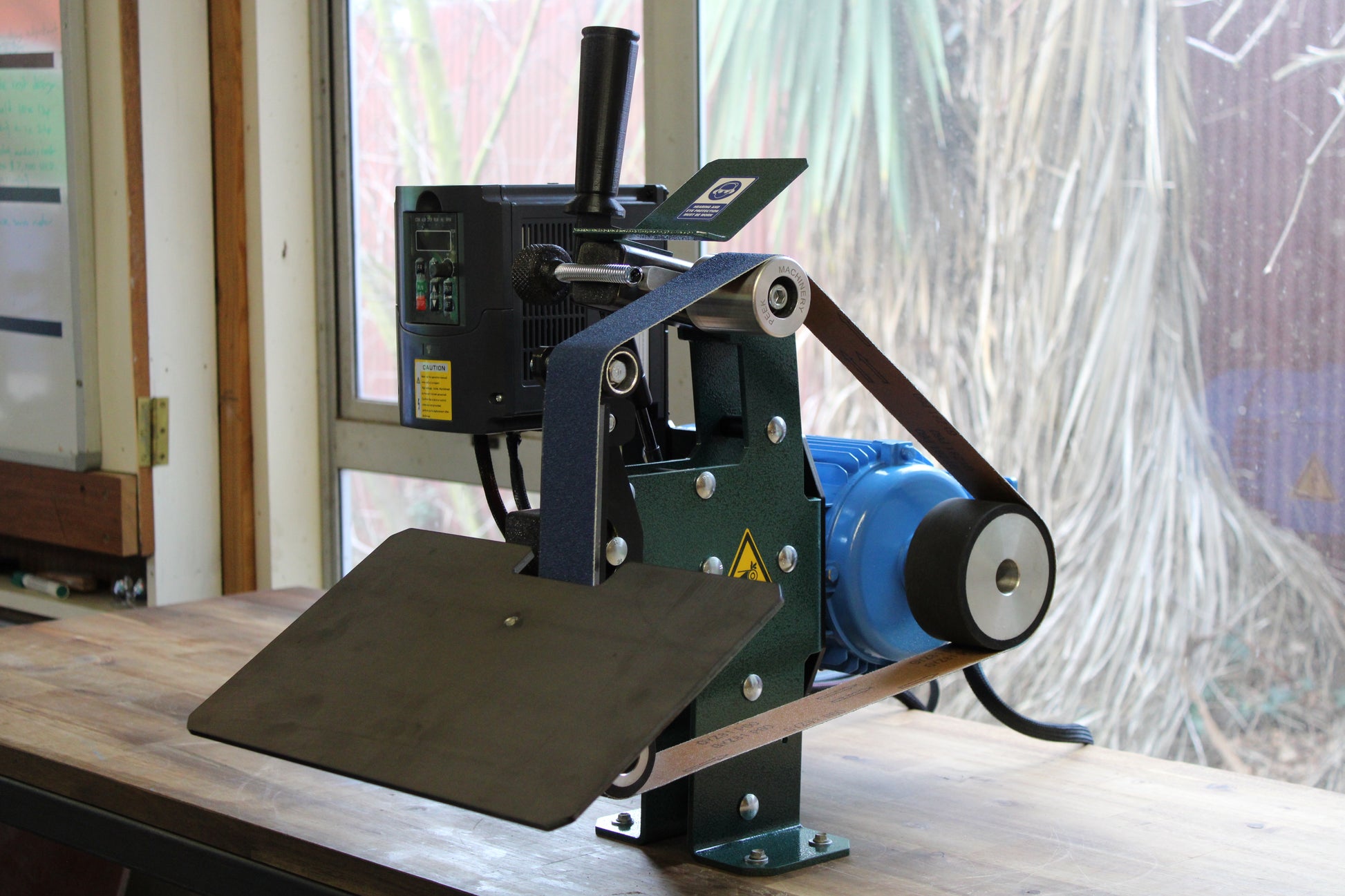

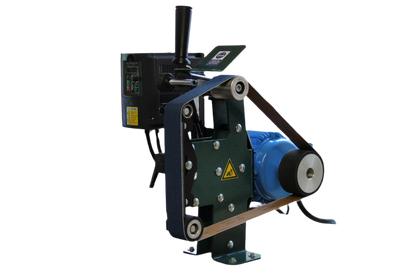

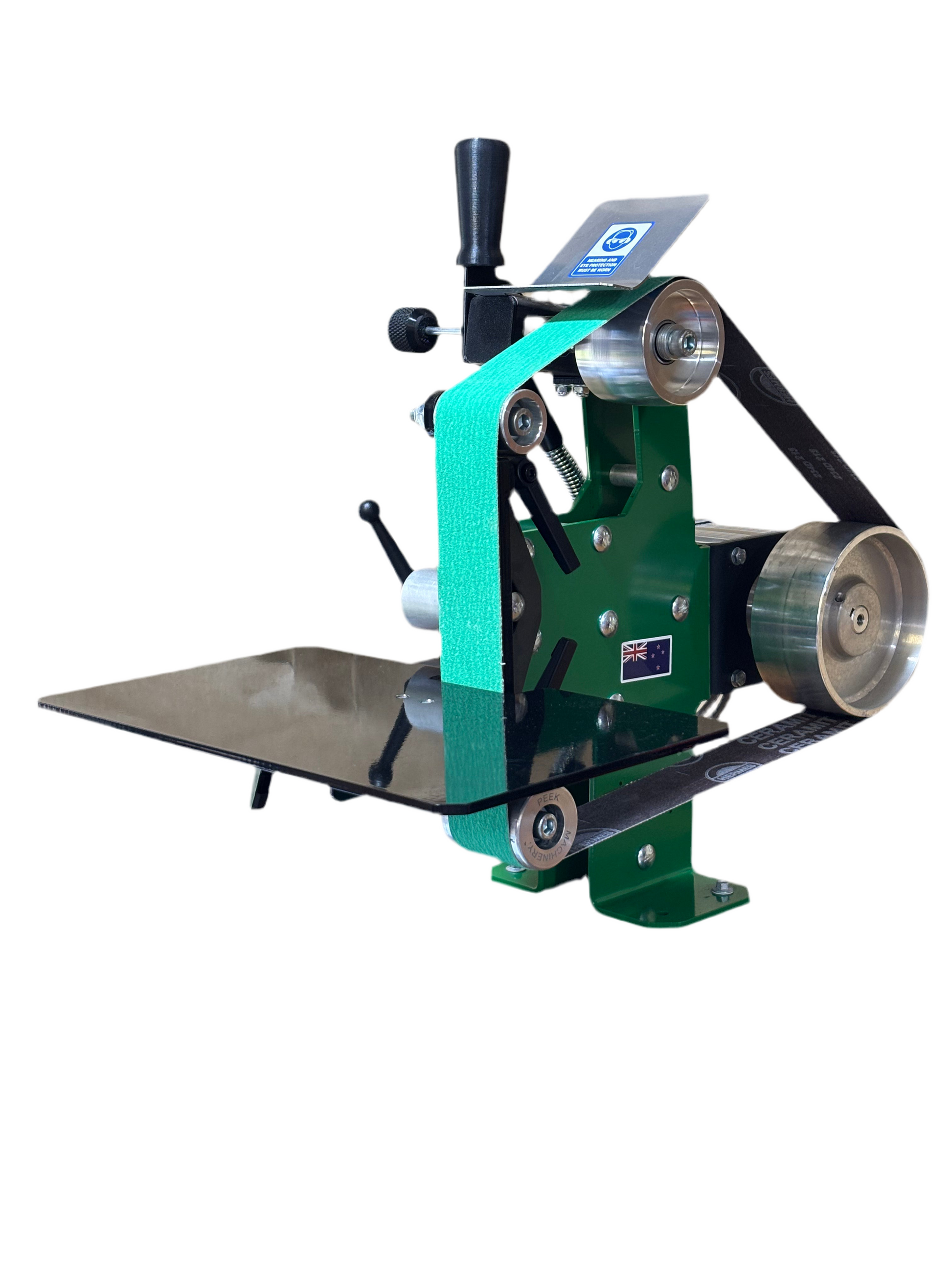

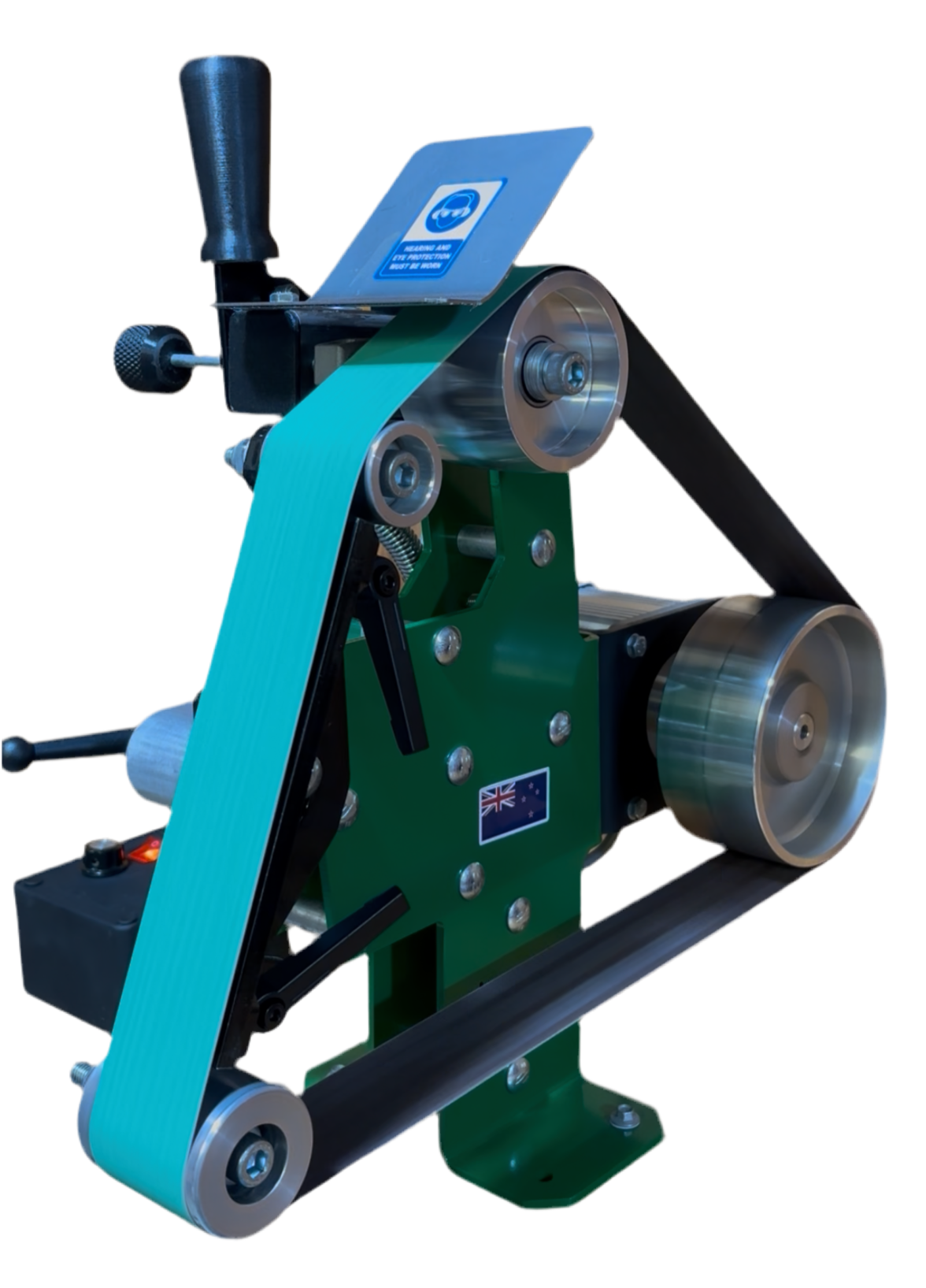

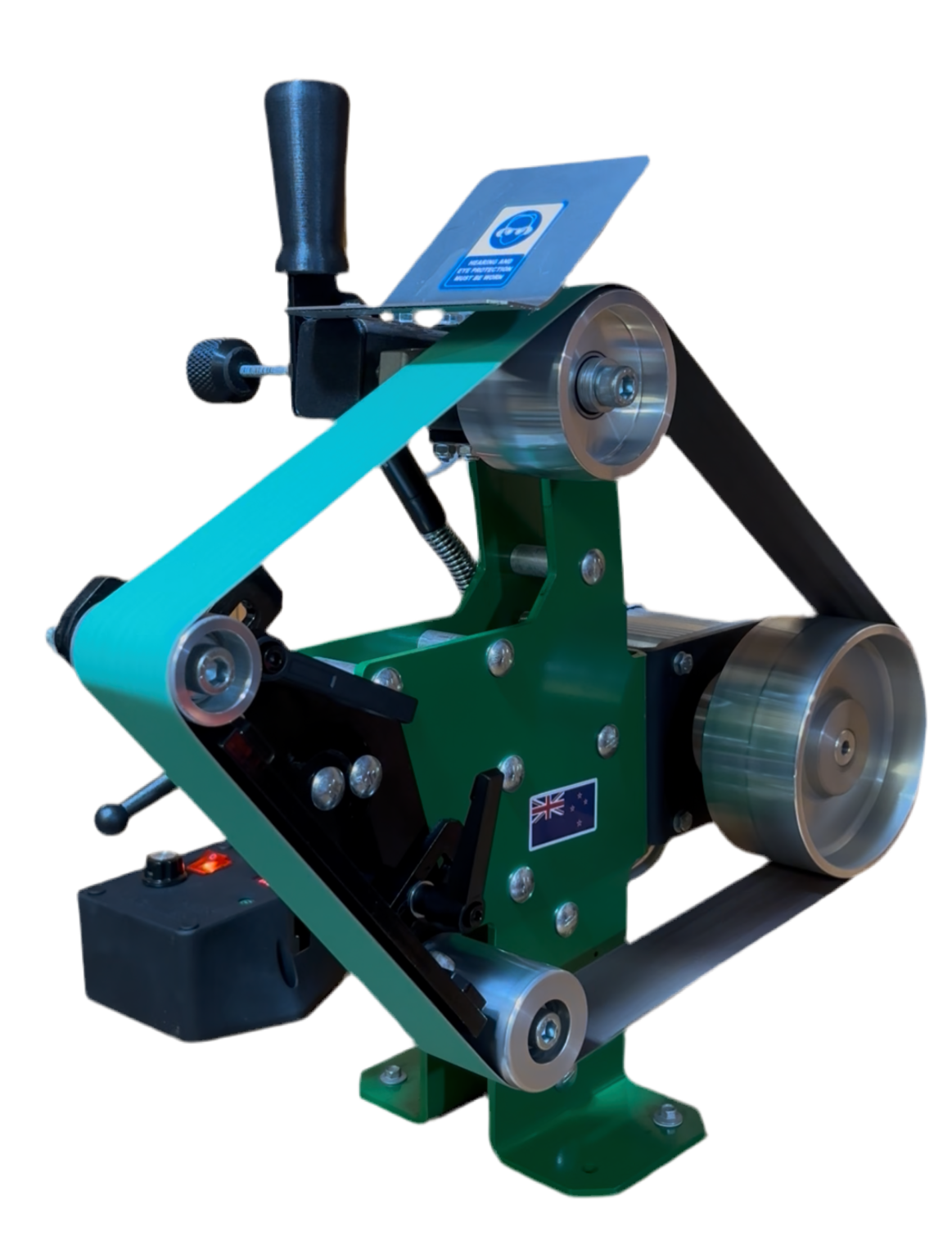

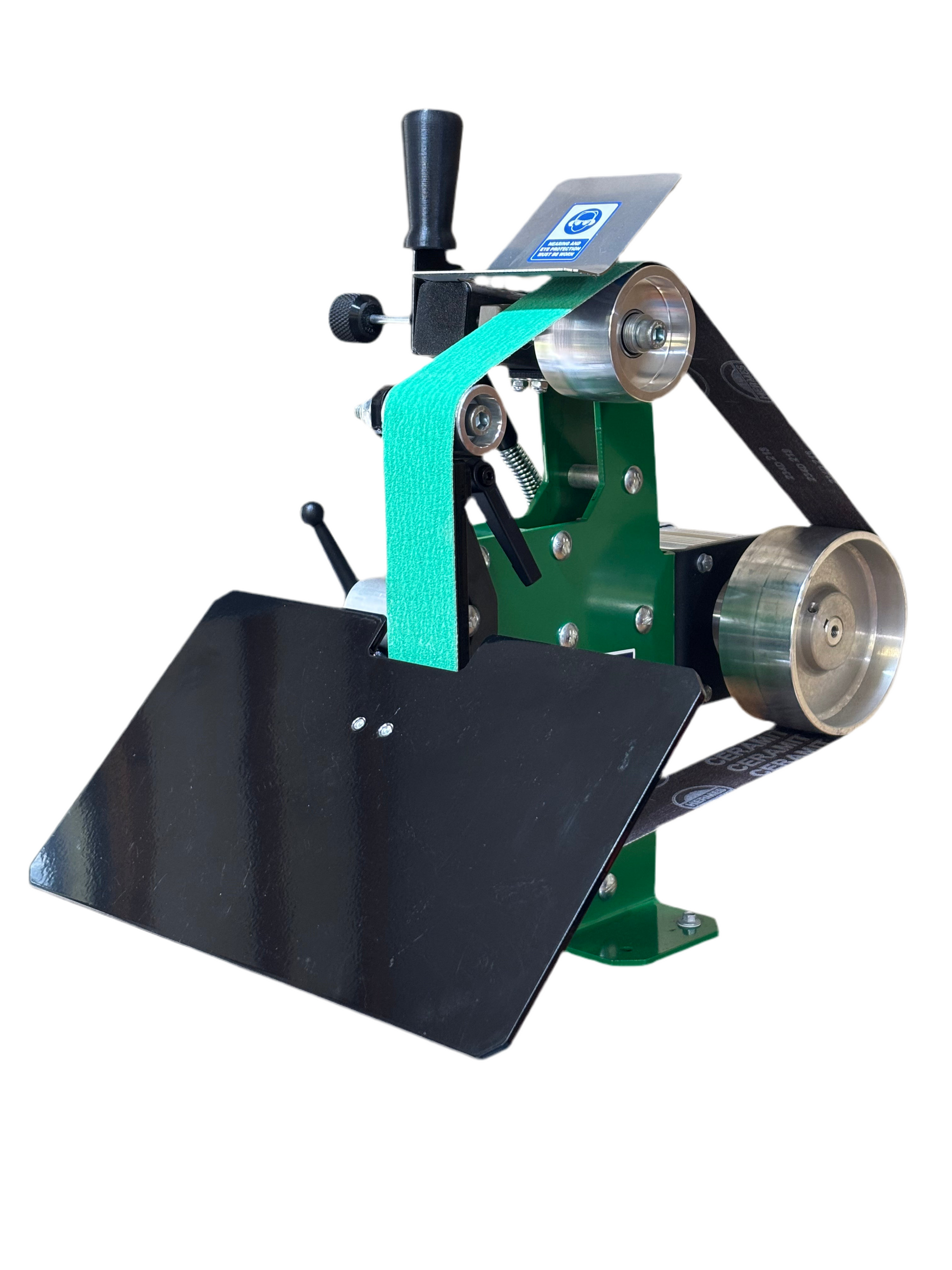

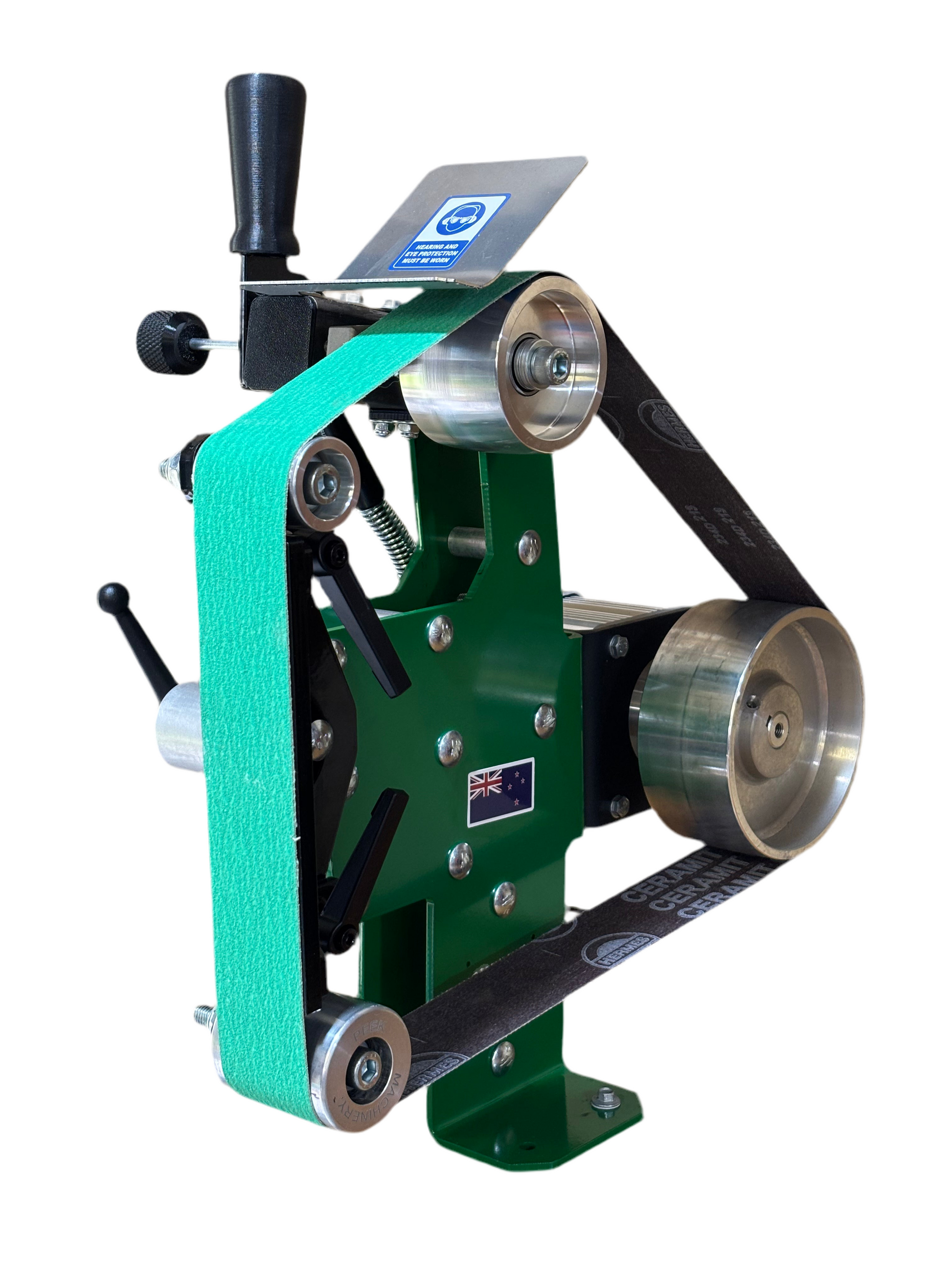

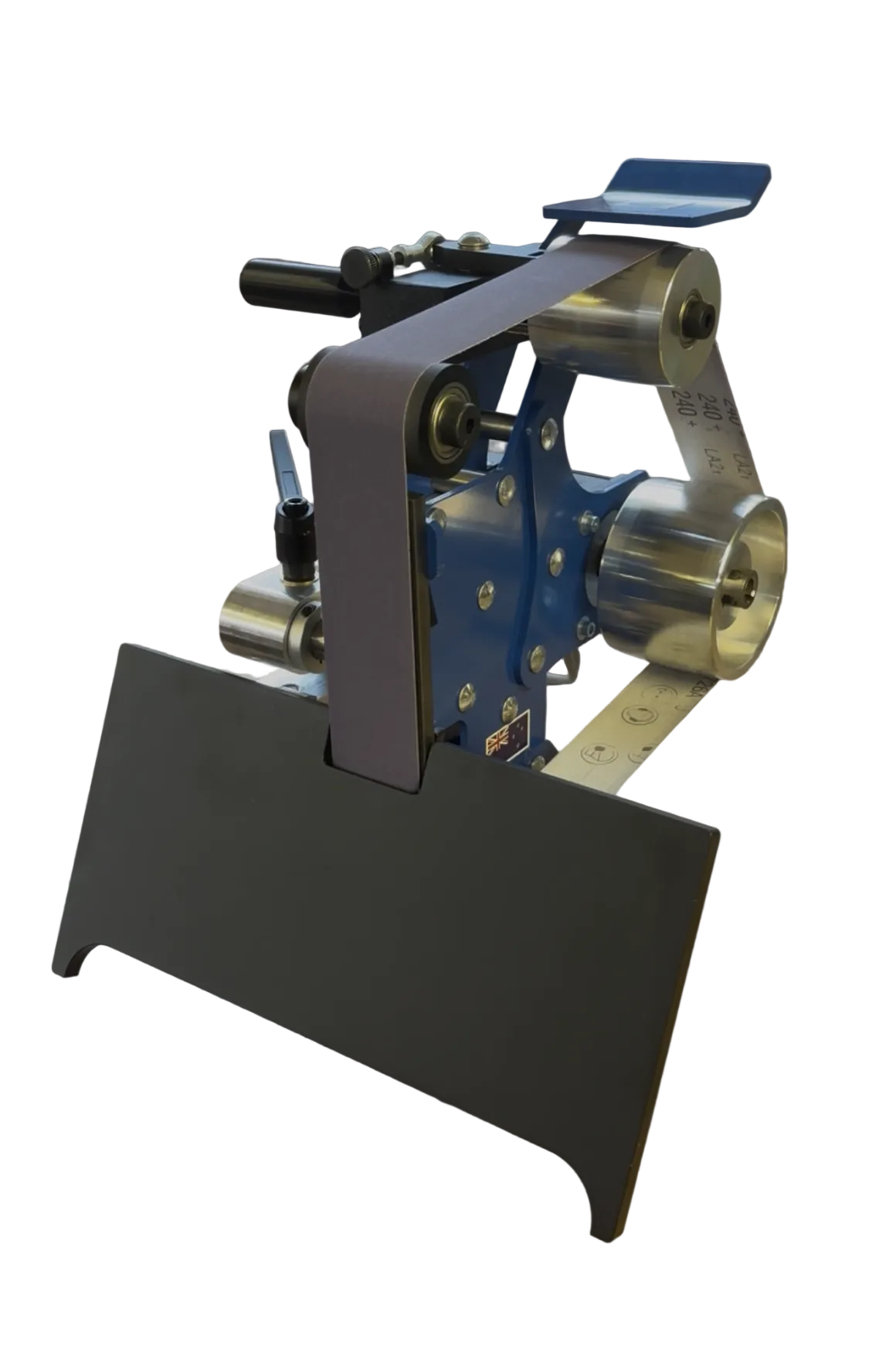

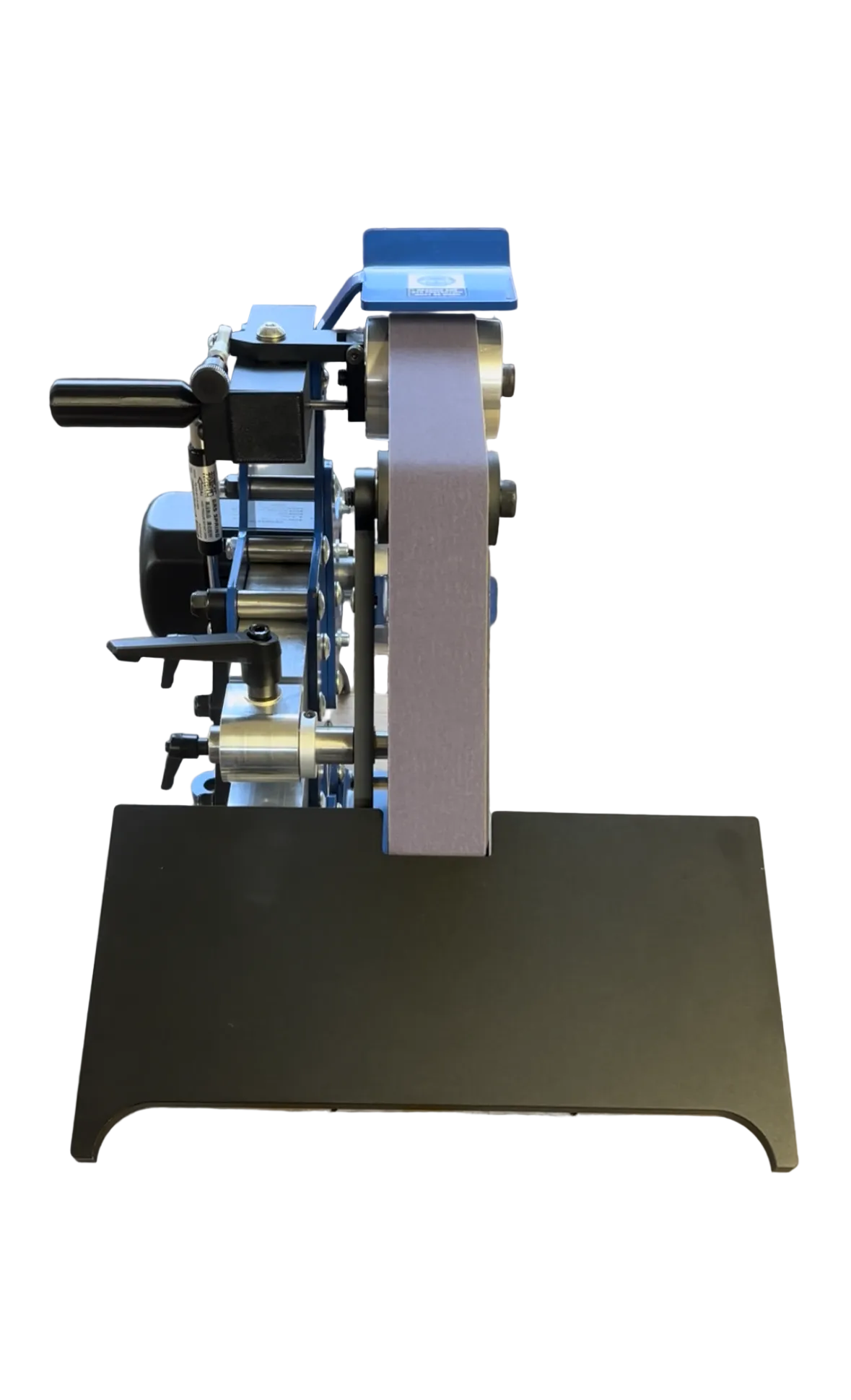

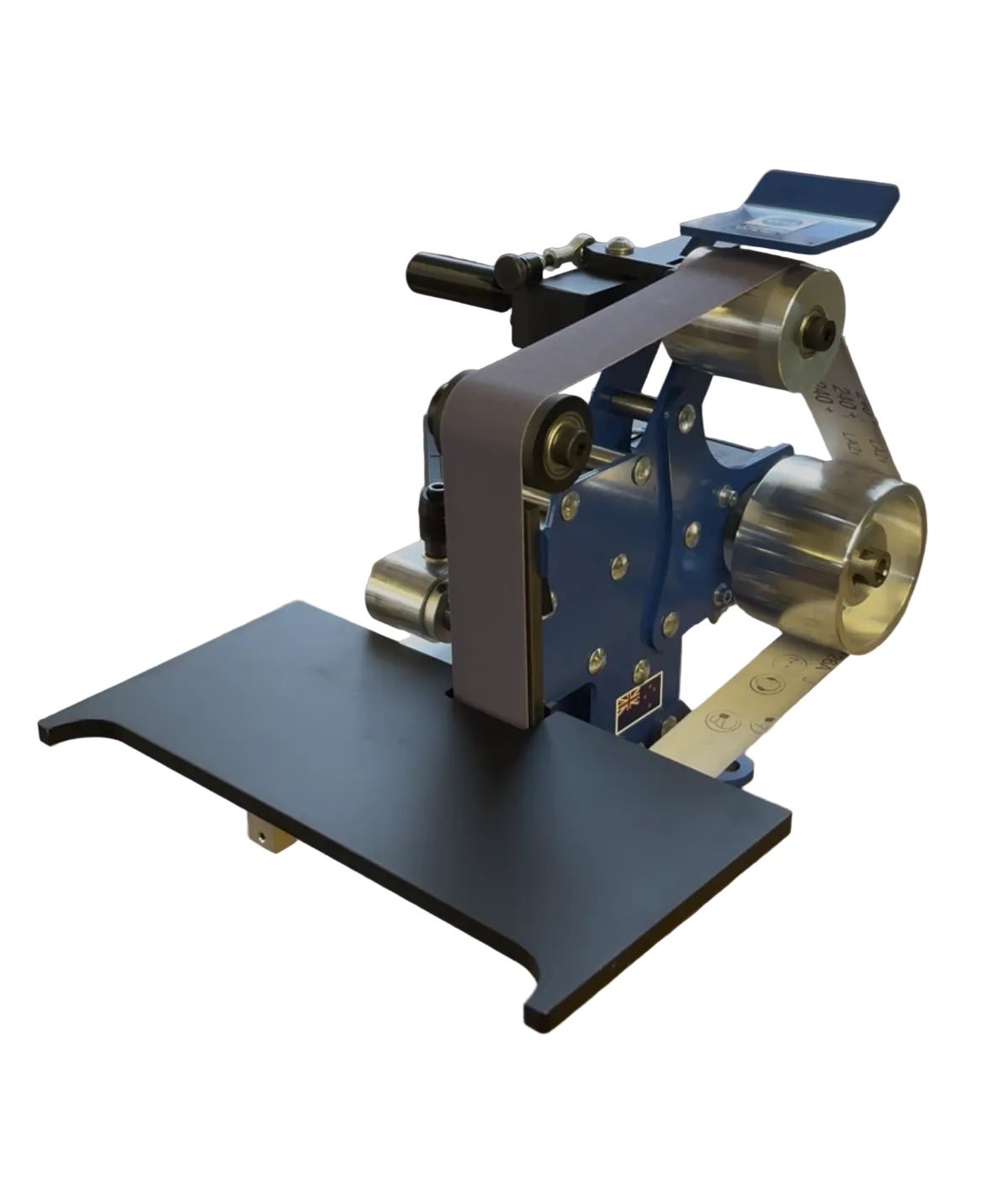

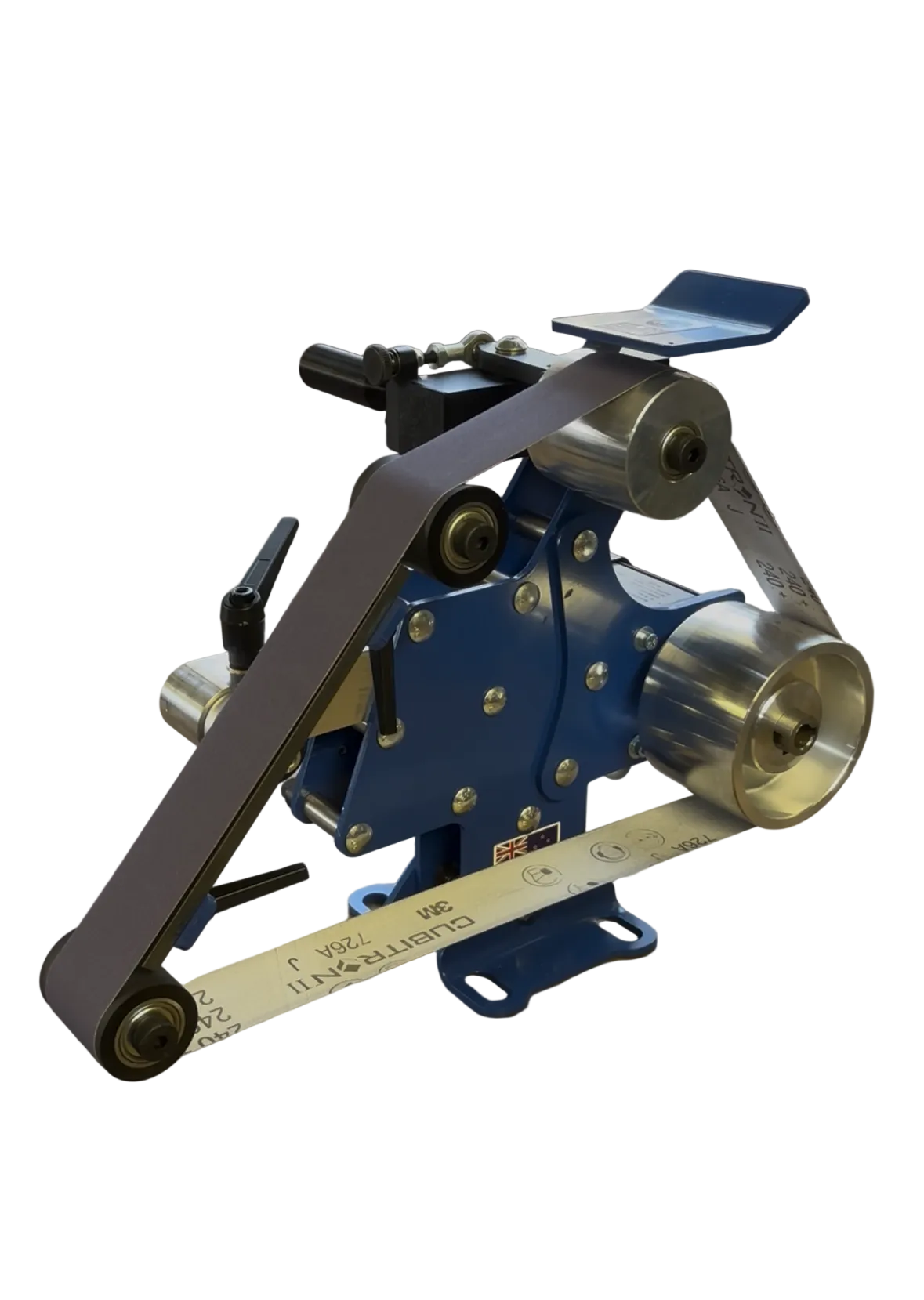

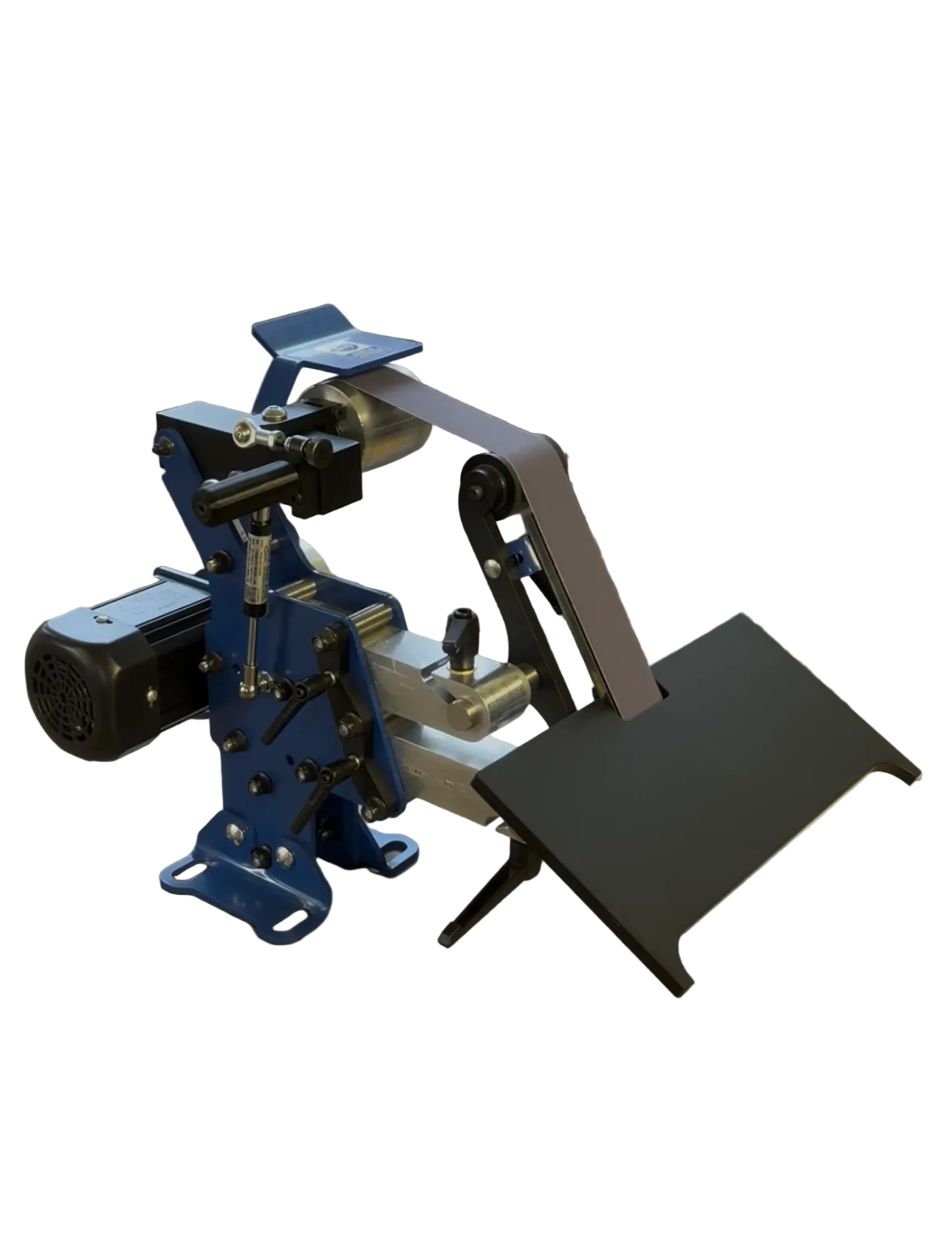

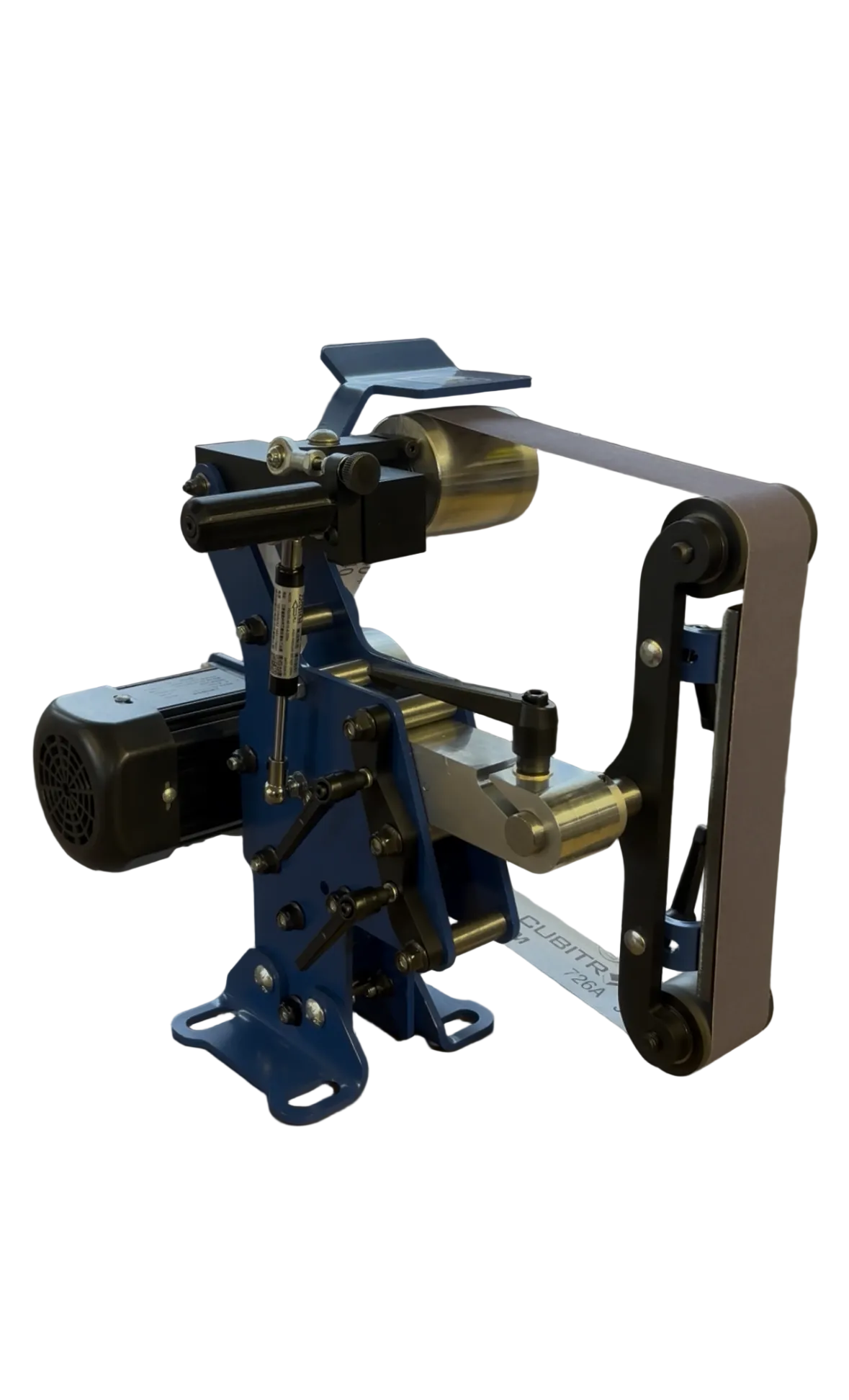

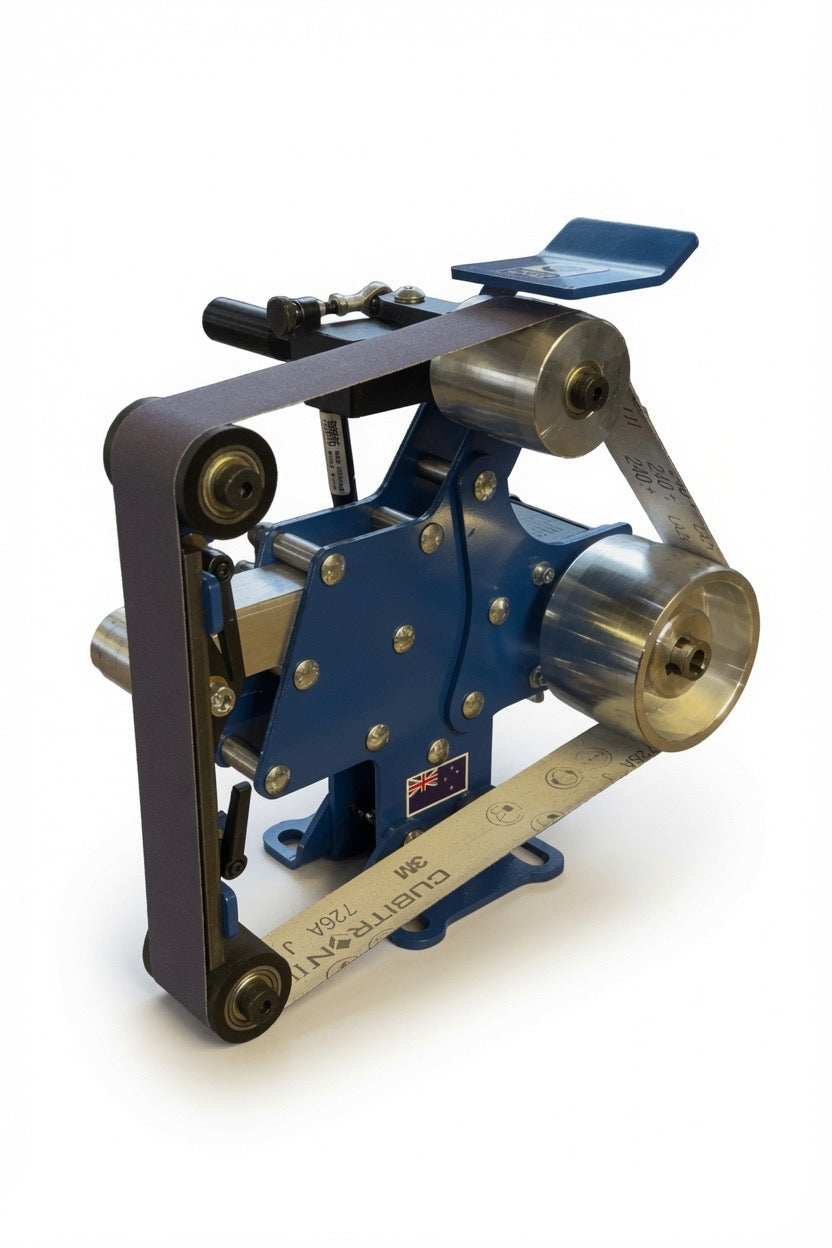

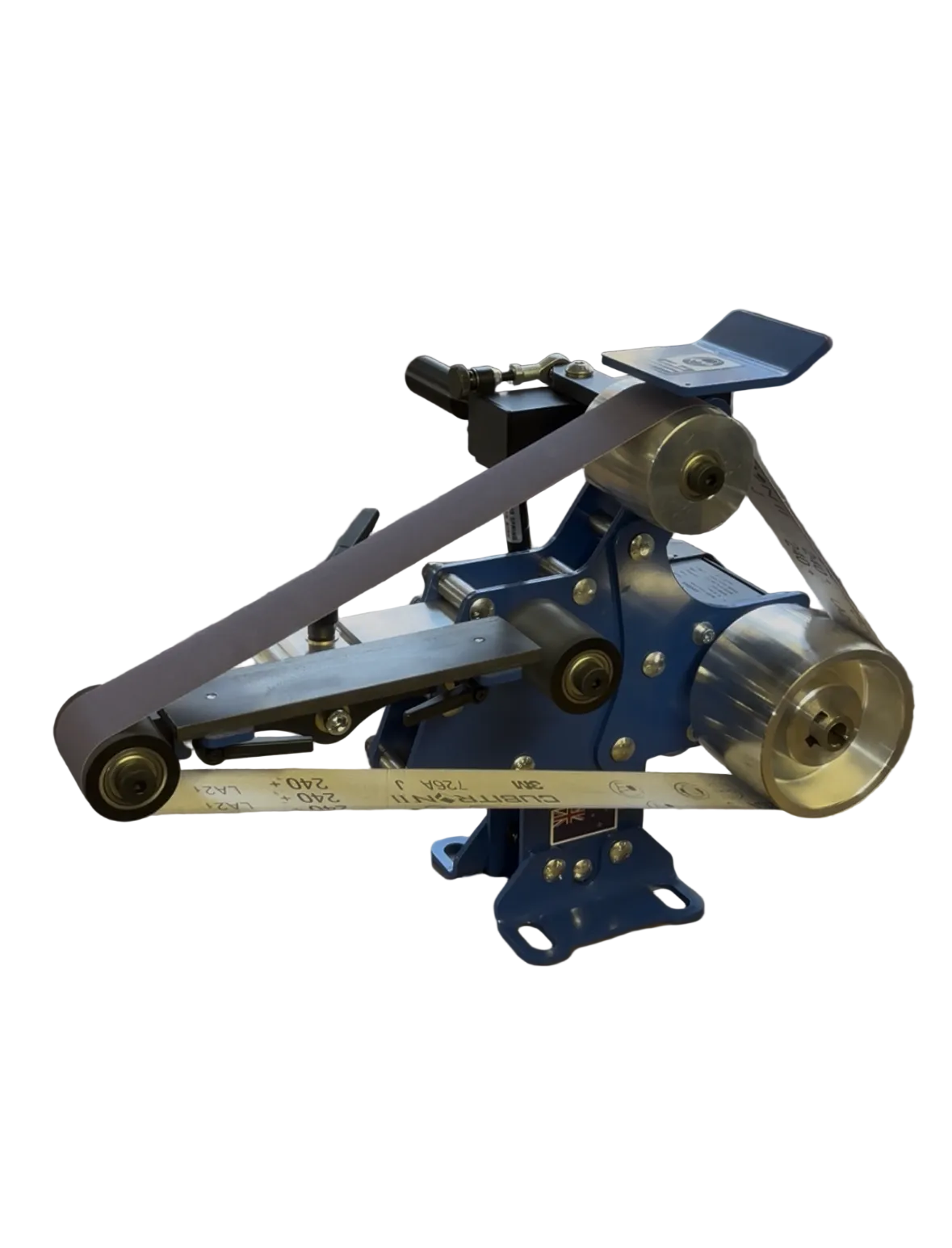

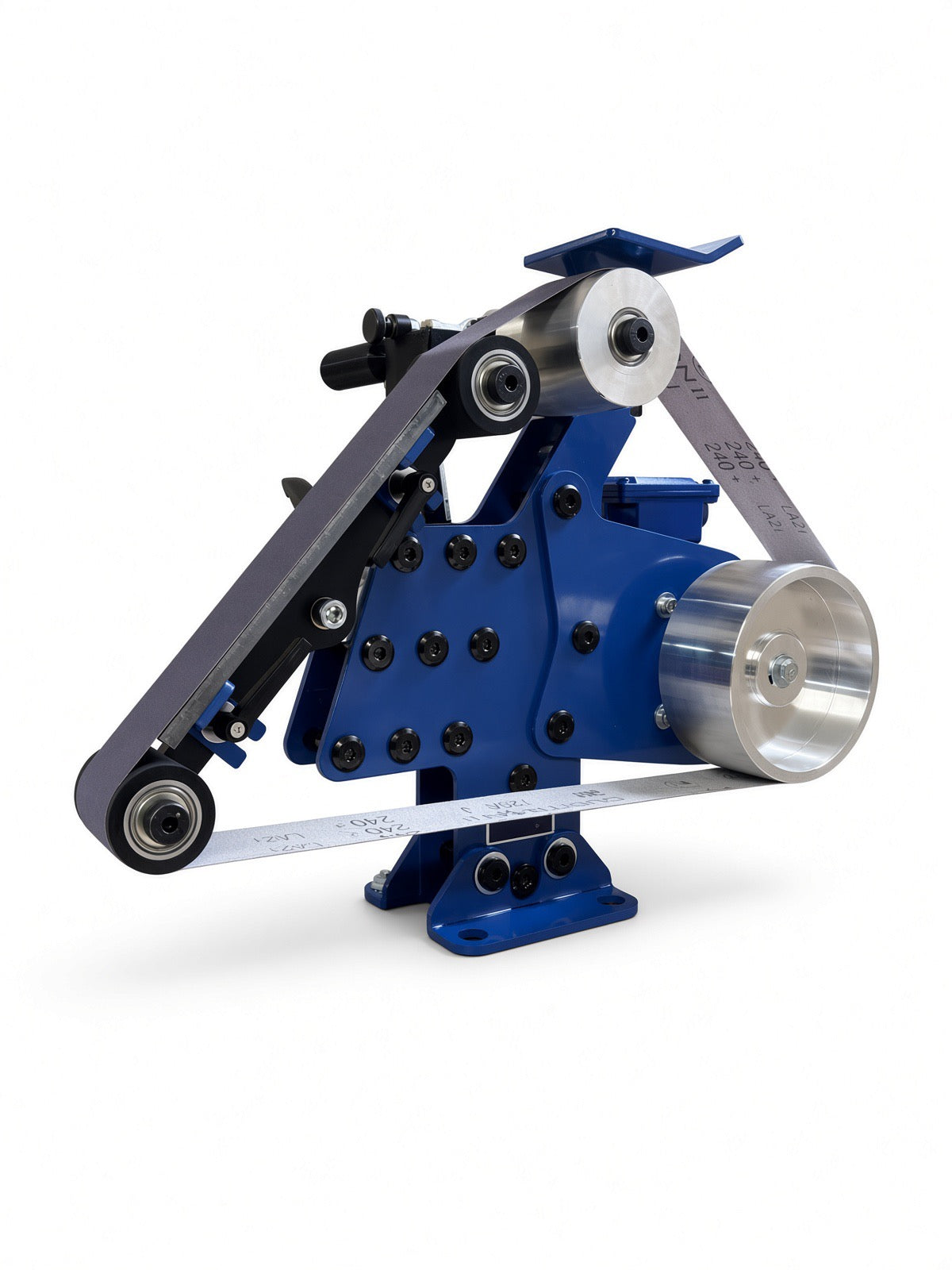

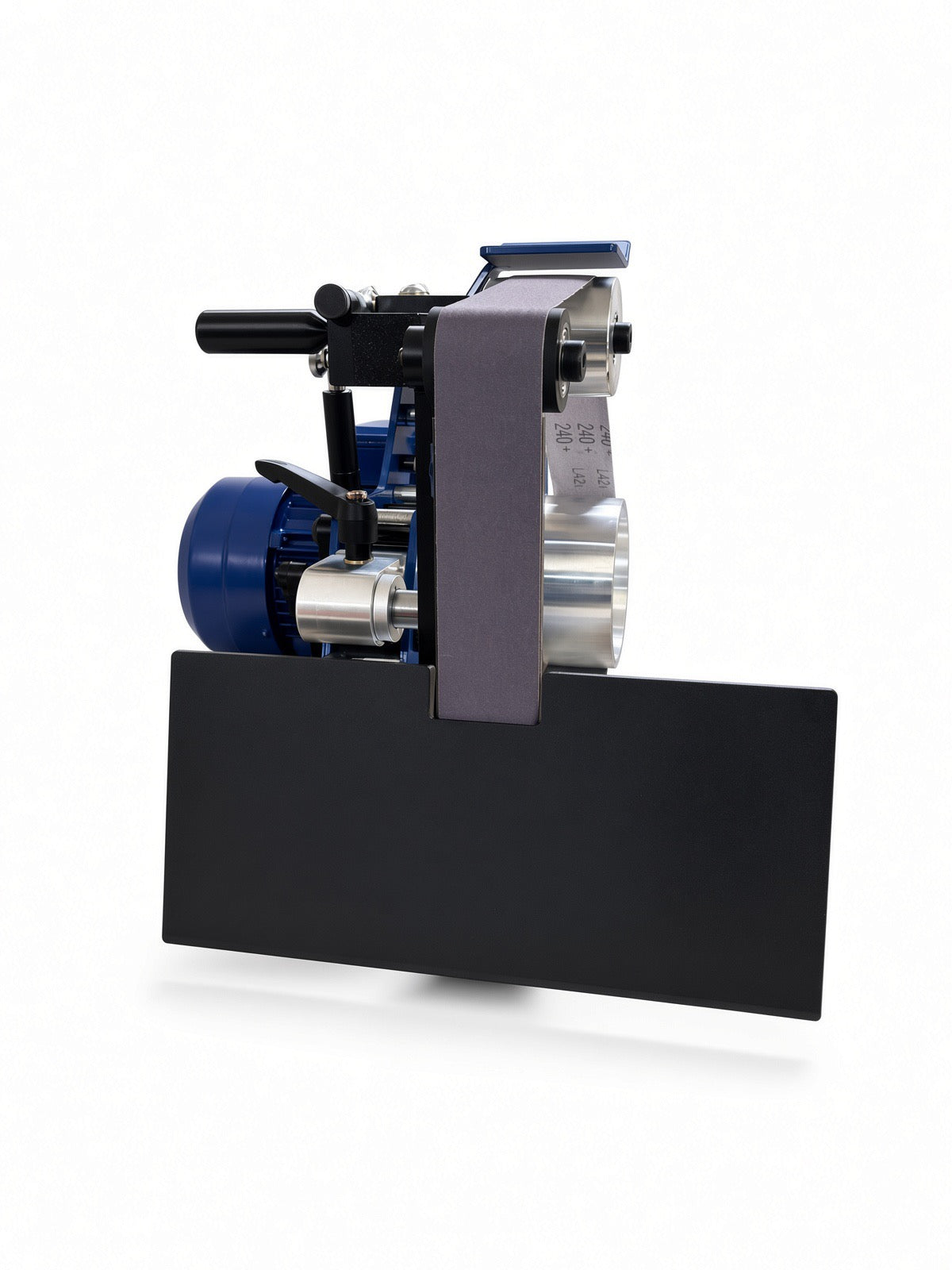

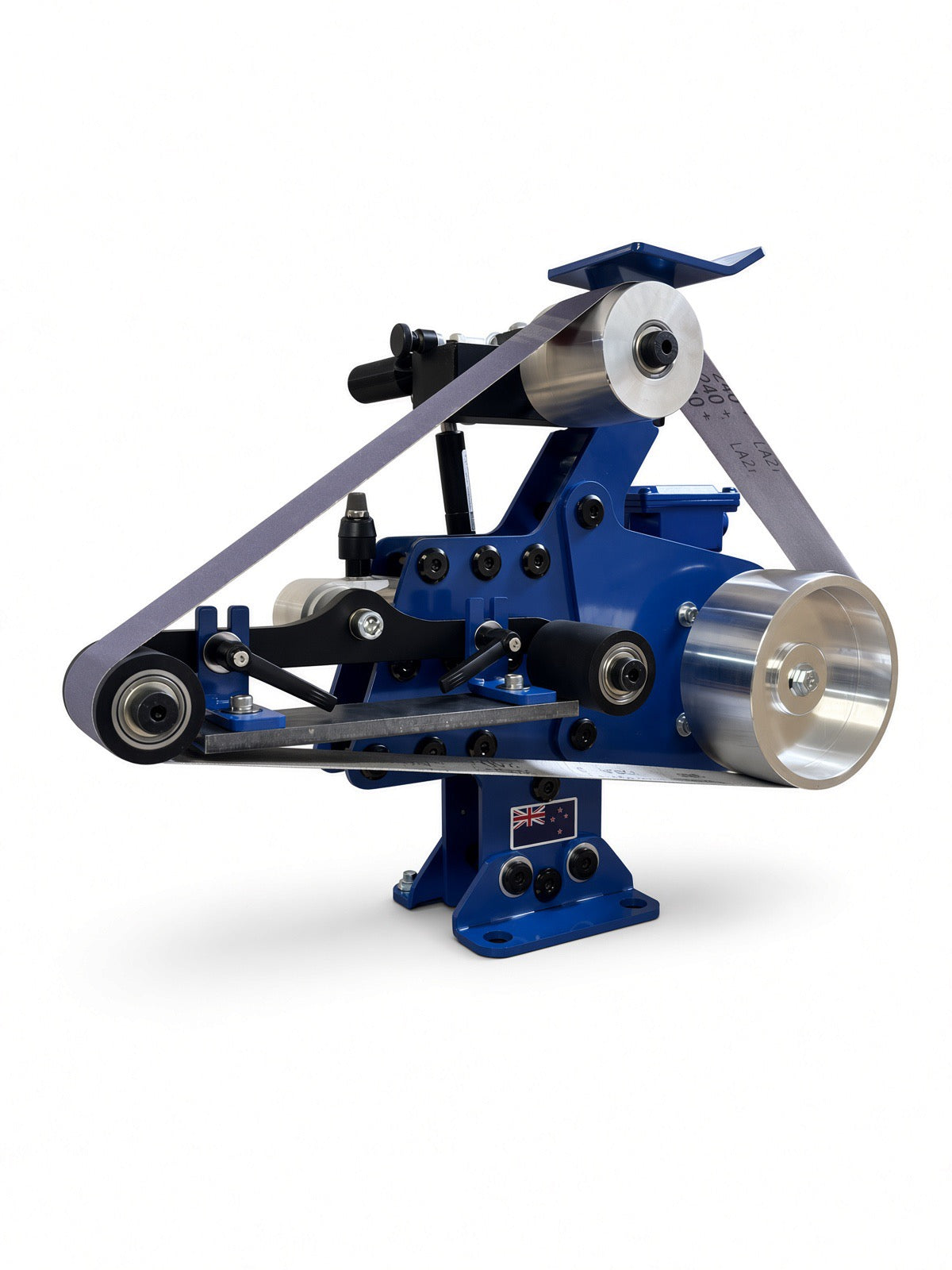

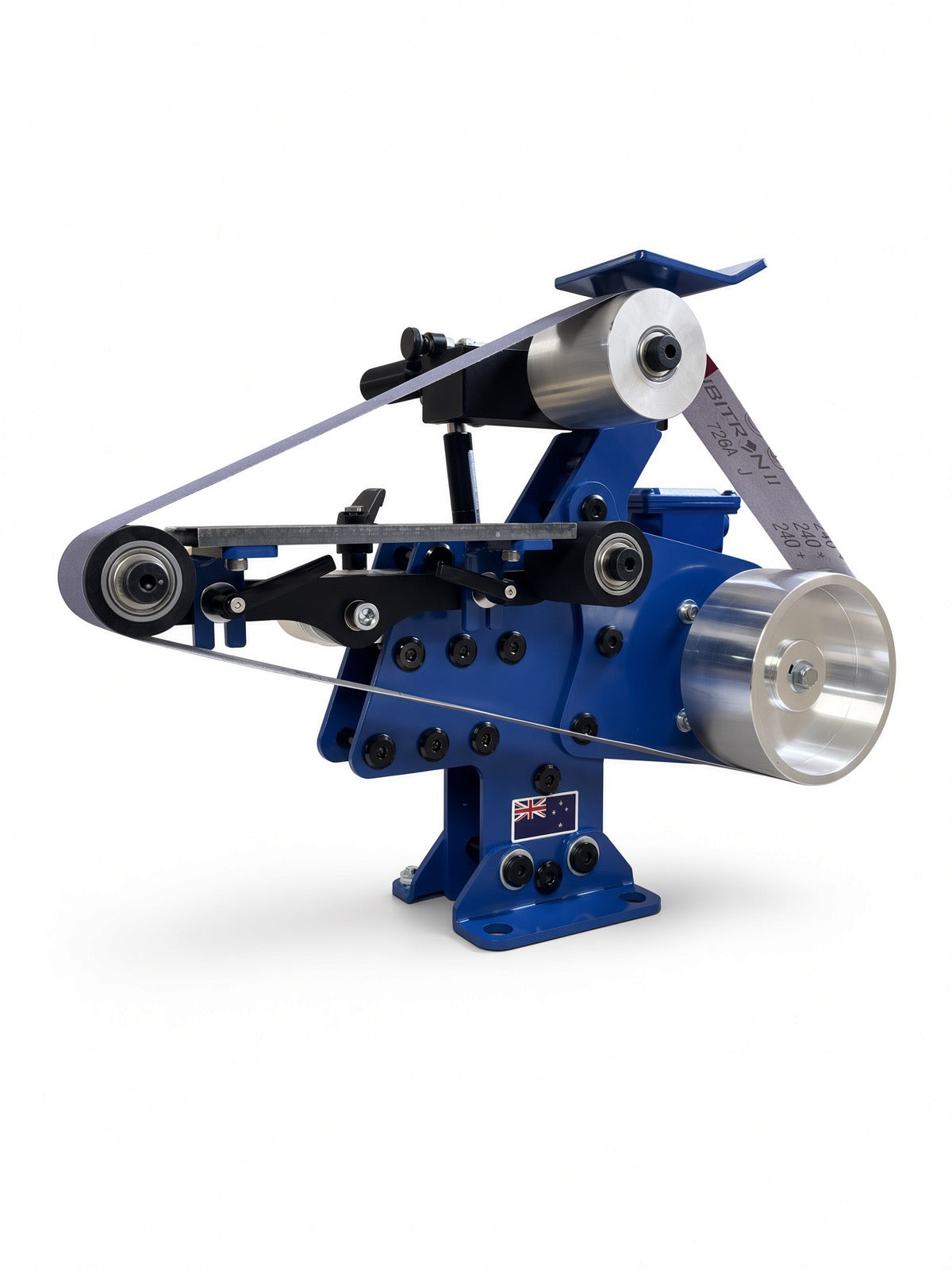

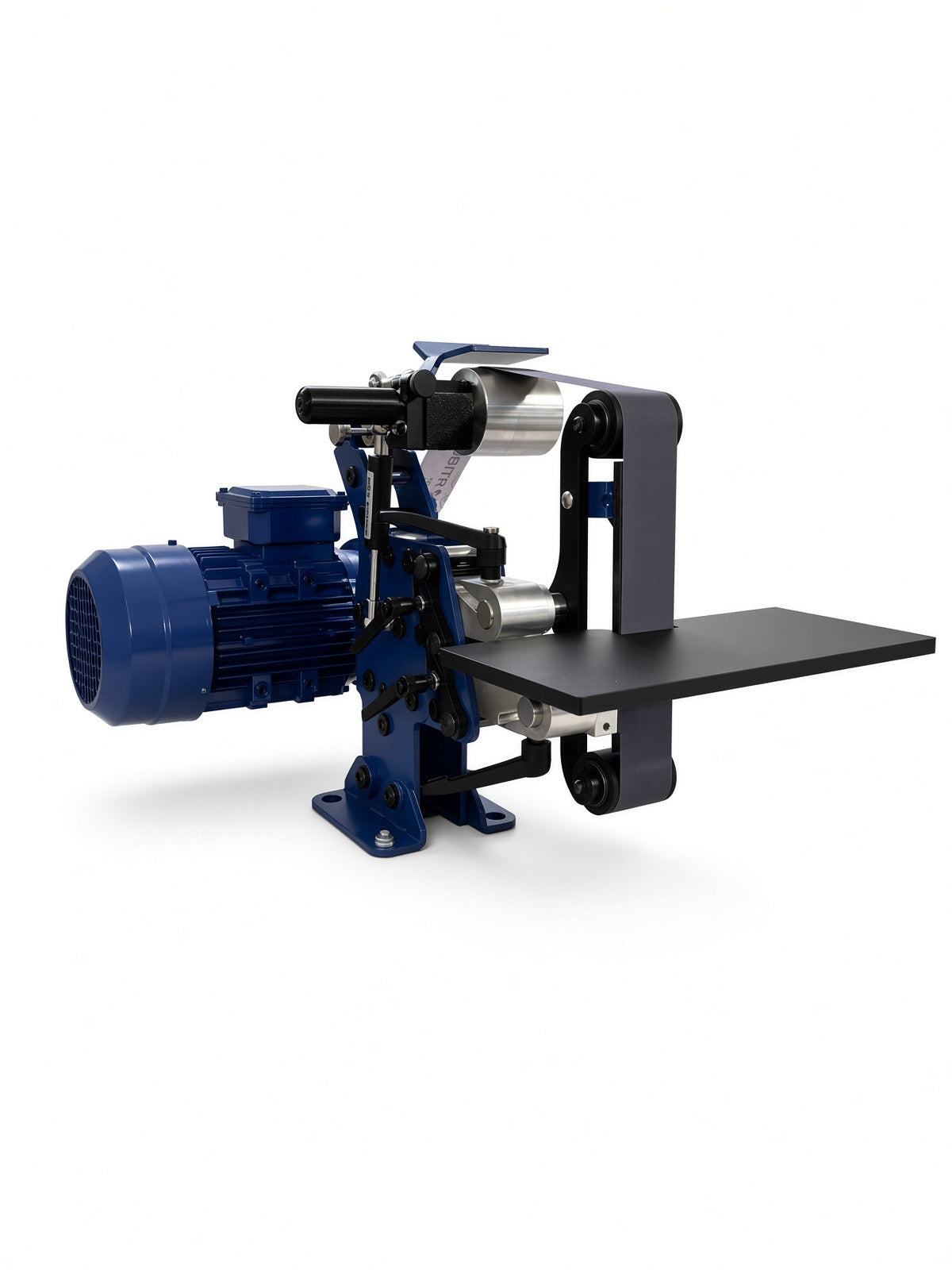

Belt Grinder 2x48" – Variable Speed 0-2800RPM – 1.5HP – Forward & Reverse

Heavy-duty 2x48 belt grinder designed for knife making, metal fabrication, and general workshop grinding applications. Features a powder coated steel frame, CNC machined aluminium components, and variable speed forward/reverse control for versatility and precision.

Designed with dual belt tracking adjustment to allow proper belt alignment in both forward and reverse operation.

Built for smooth operation, rigidity, and easy adjustment.

Proudly Made In New Zealand, by Haast Engineering.

FREE 5 pack of 3M Cubitron II 726A Ceramic belts valued at $75 included!

Specifications:

• Belt Size: 2x48"
• Motor: Industrial Grade - 1.5HP

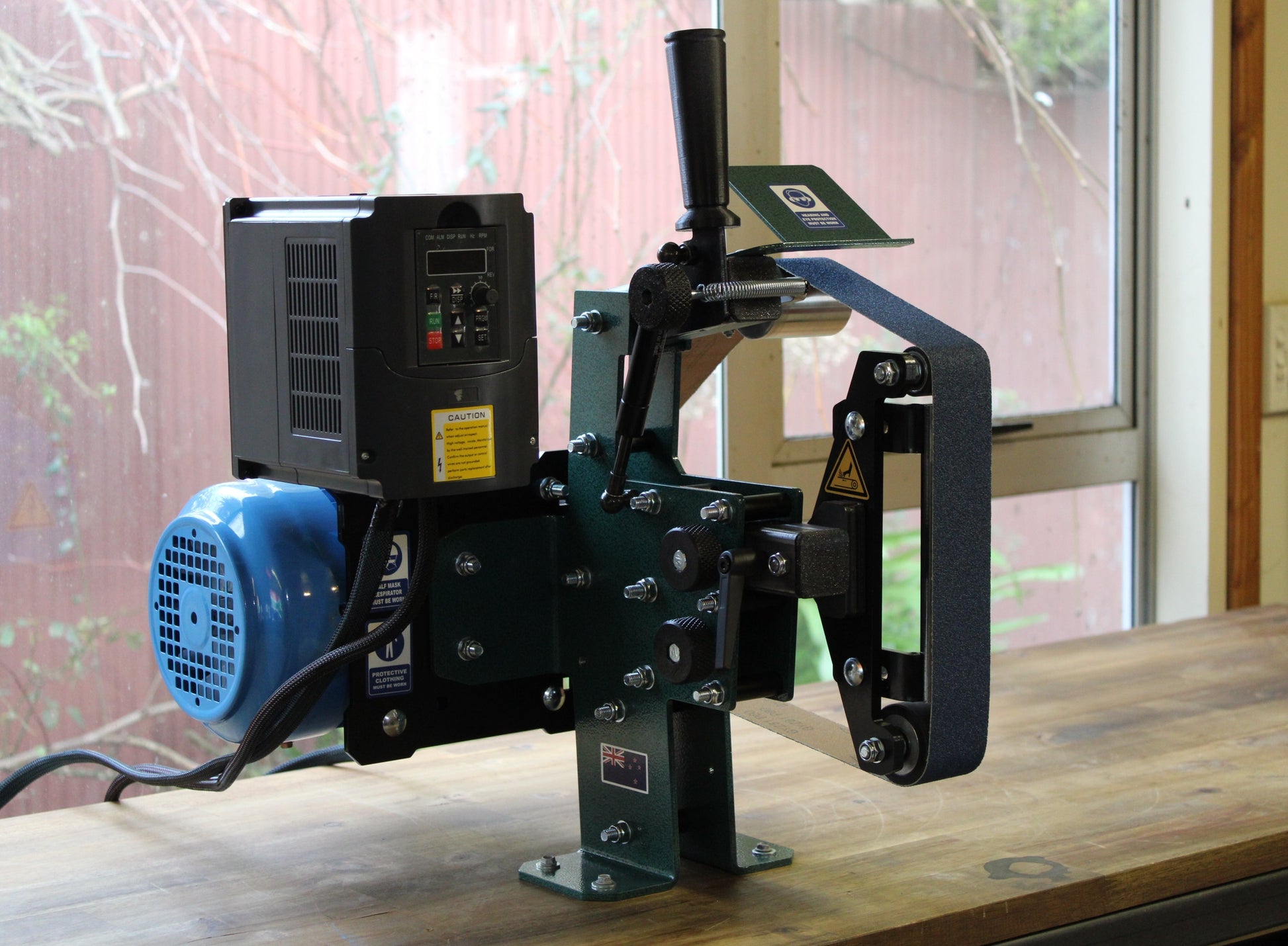

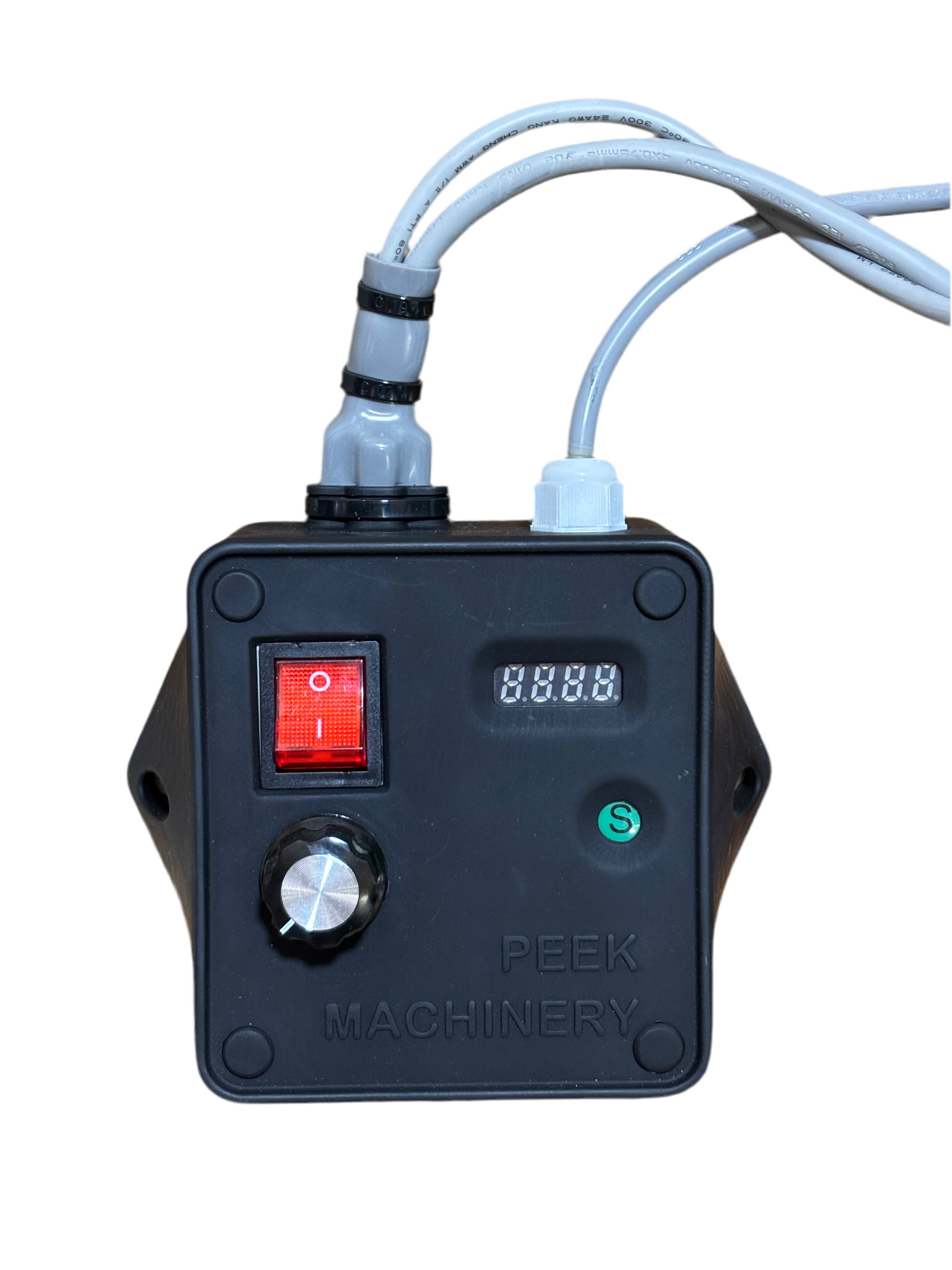

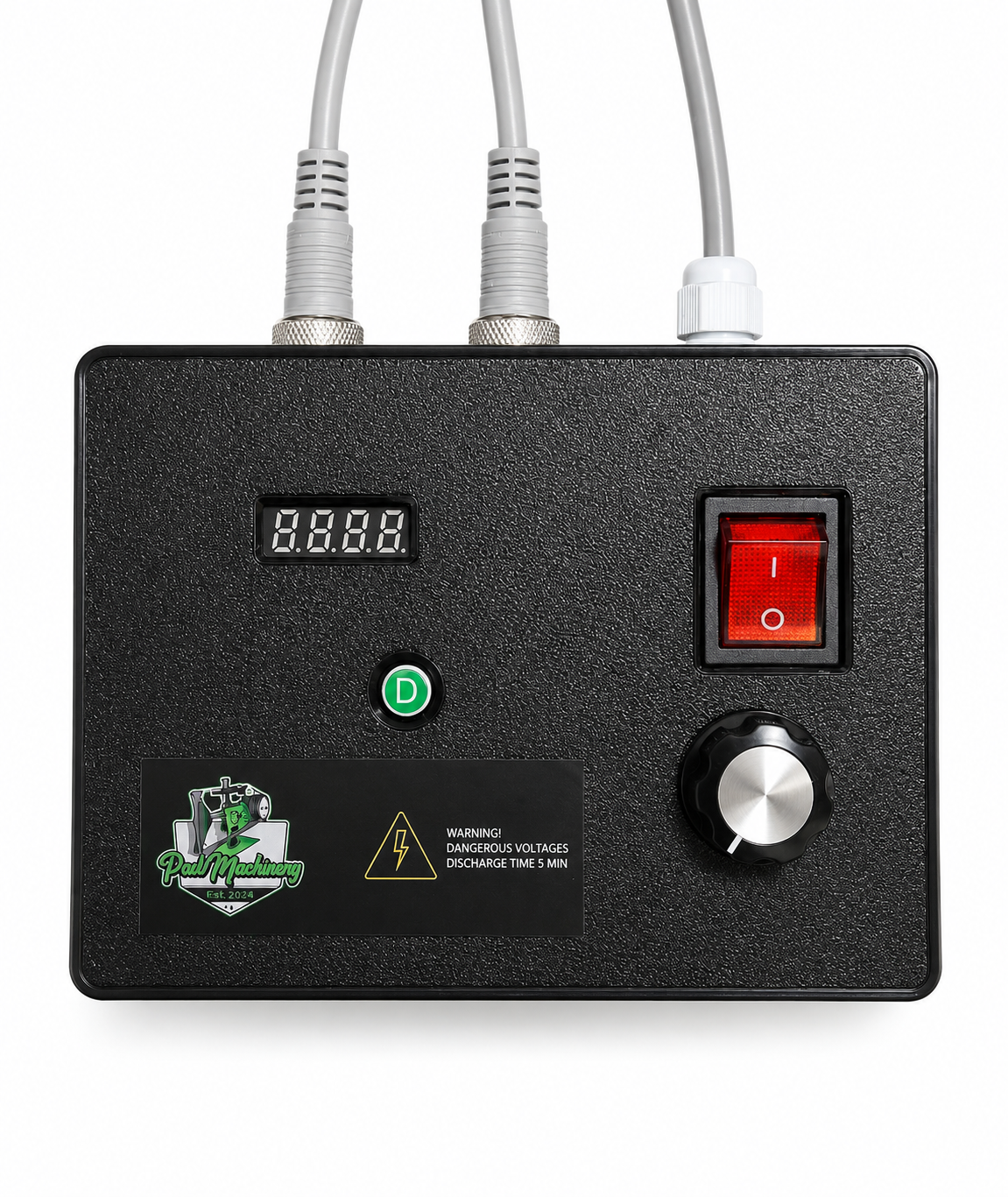

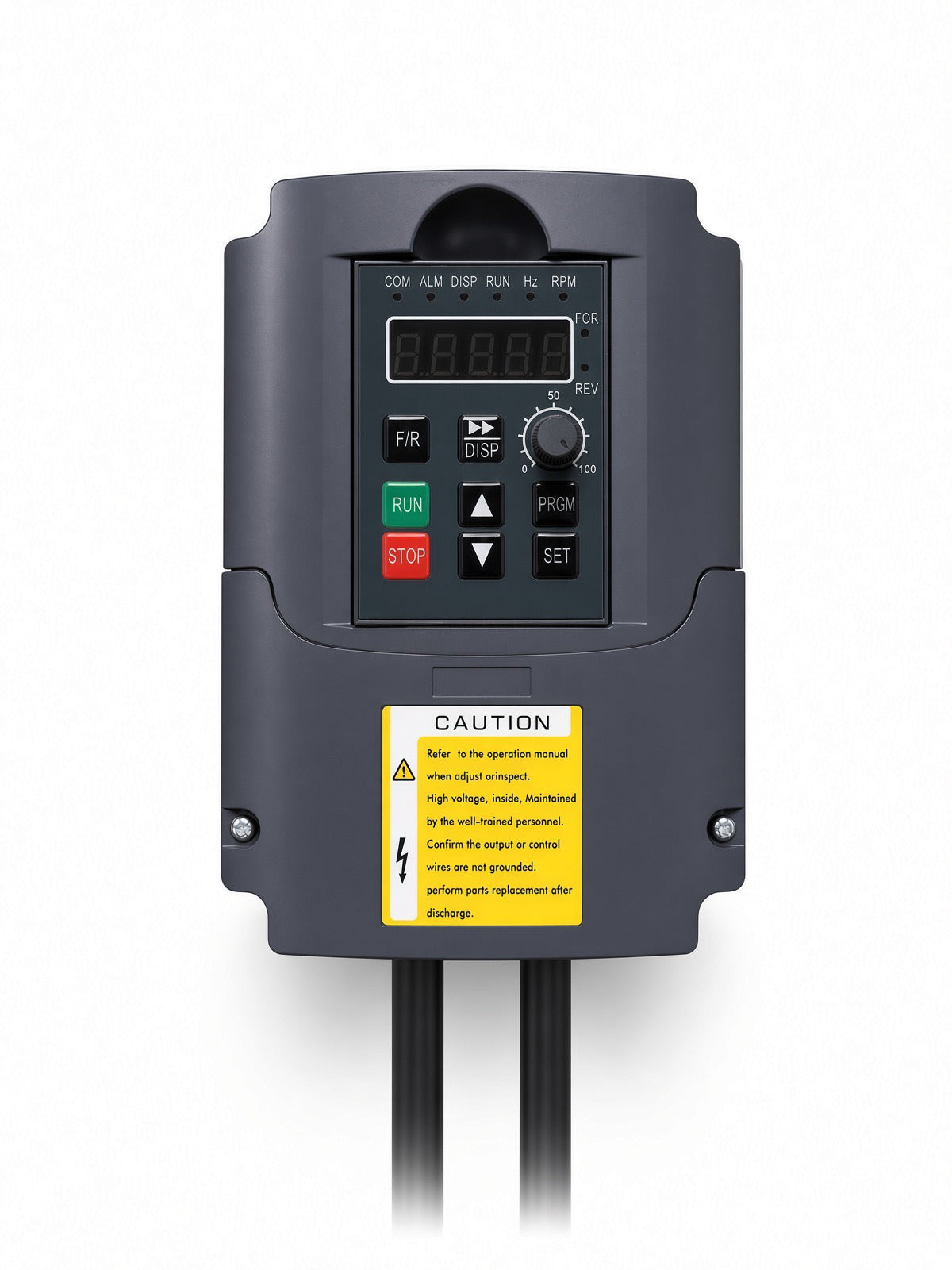

• Speed Controller: Industrial Grade Variable Speed With Forward/ Reverse Switching
• Motor Speed: 2800 RPM
• Power Requirement: Single Phase 240V
• Rotation: Forward / Reverse
• Frame: Powder Coated Steel
• Drive Wheel: 130mm
• Contact Wheels: Two 45mm Rubber Wheels
• Bearings: Sealed Steel Bearings
• Tooling Arms: CNC Machined Aluminium

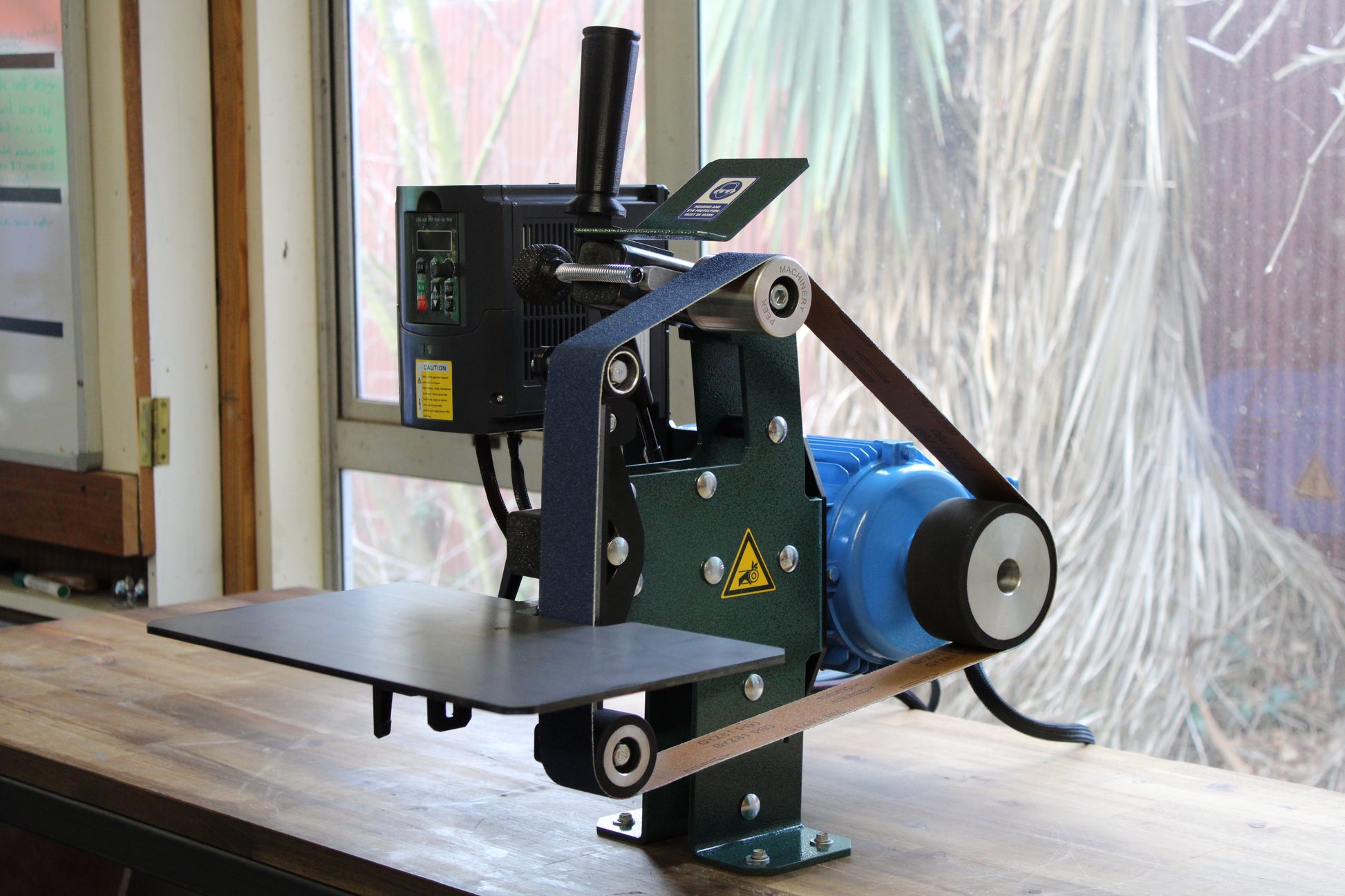

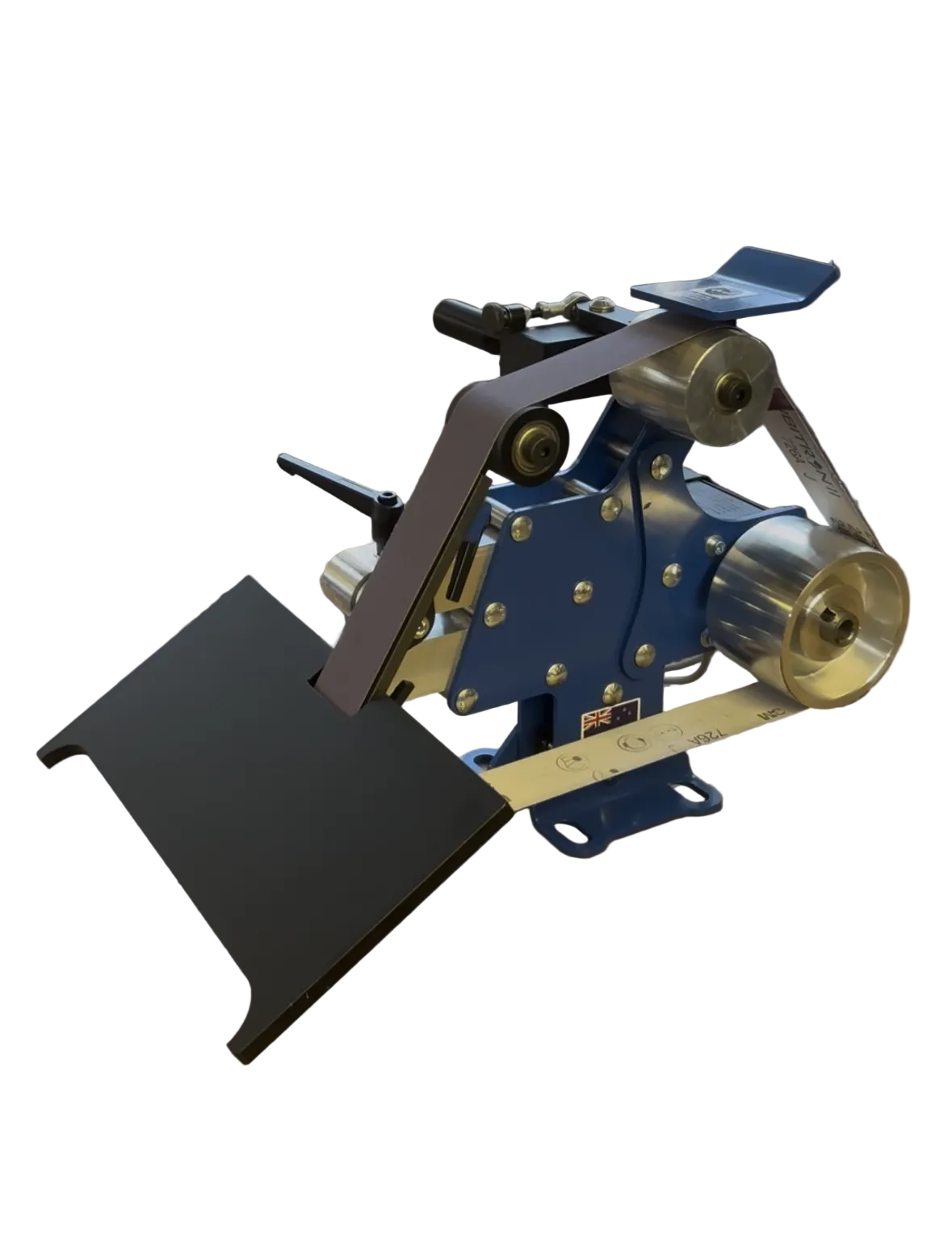

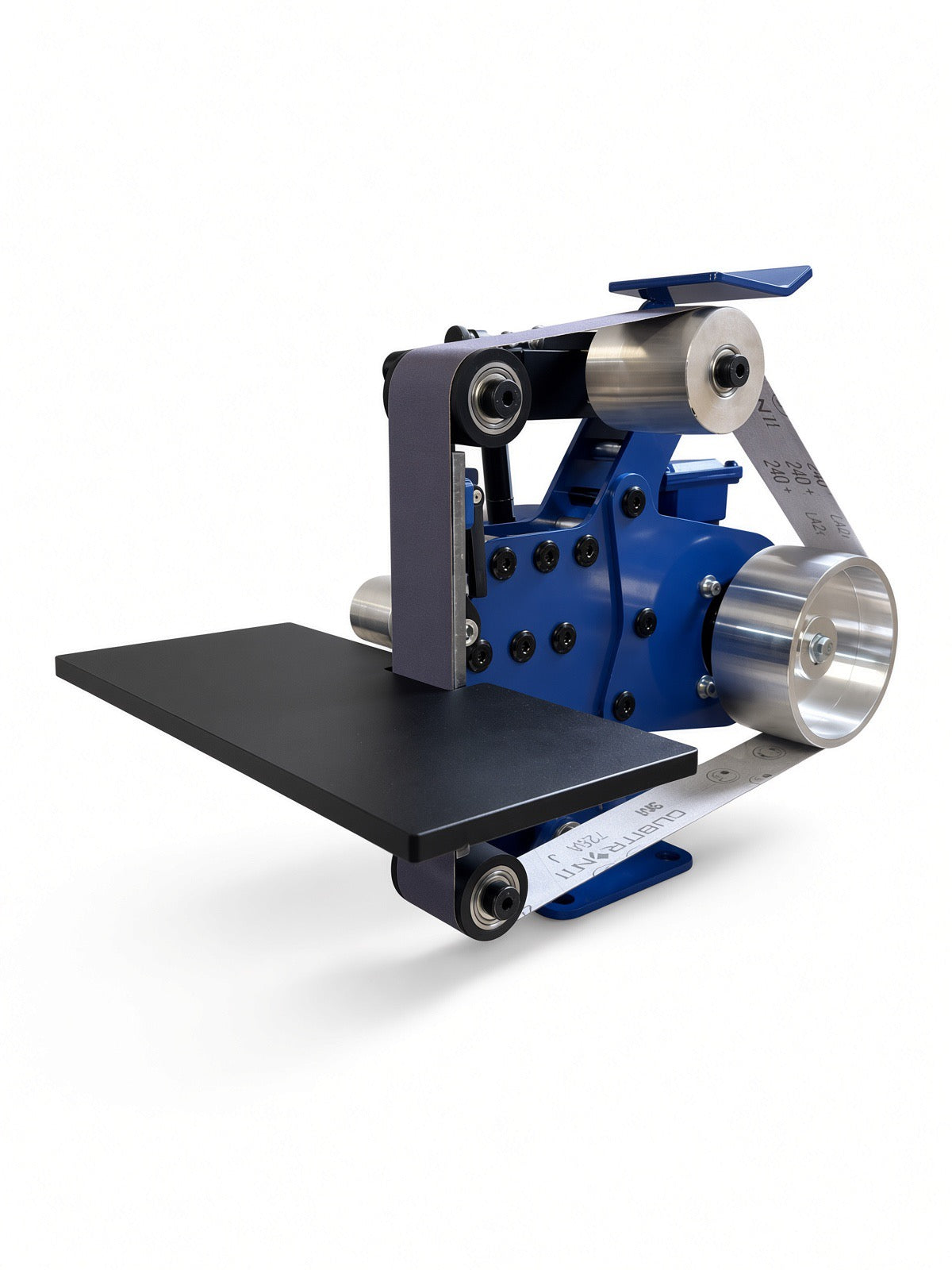

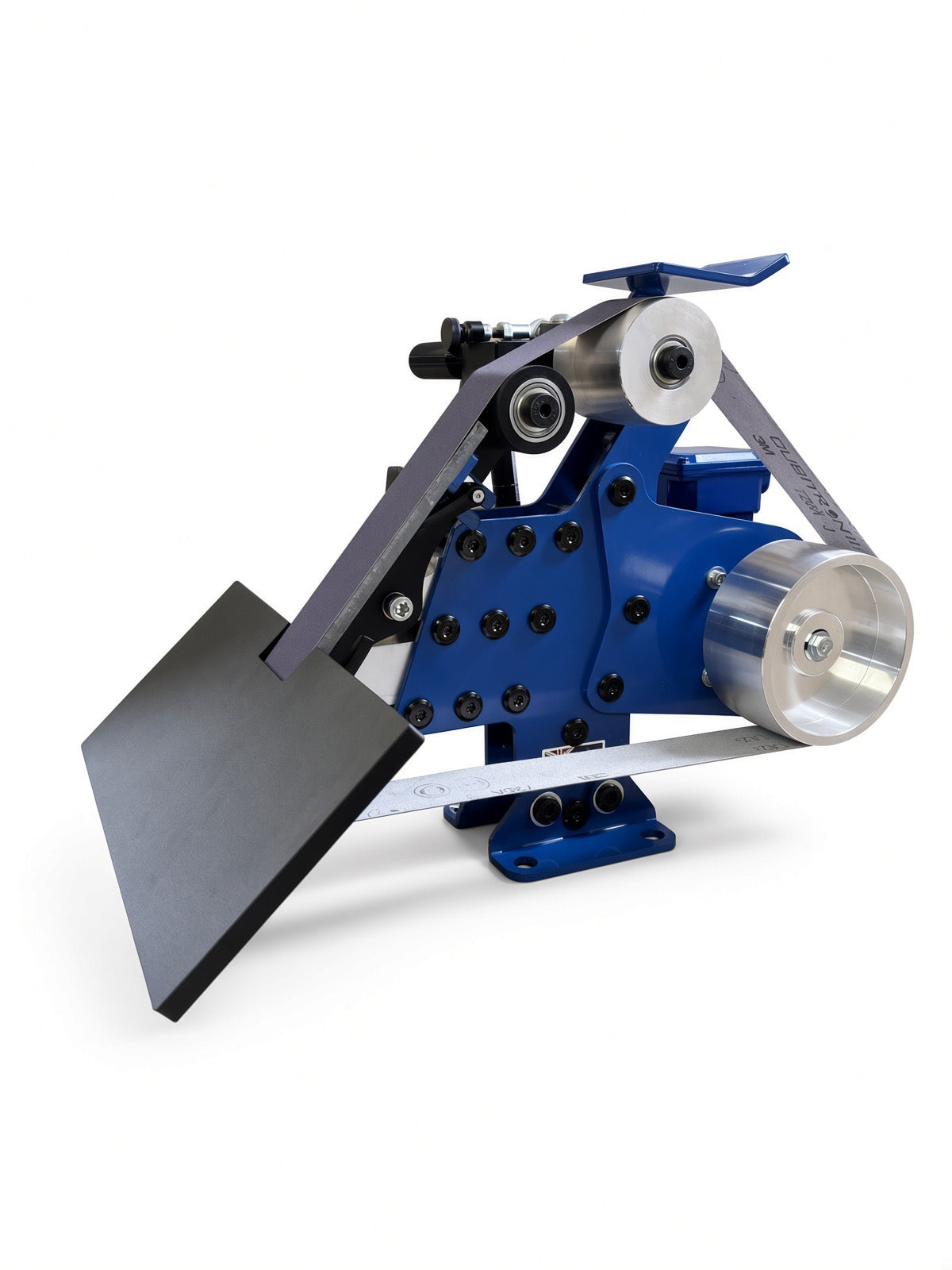

• Table Rest: CNC Machined Aluminium

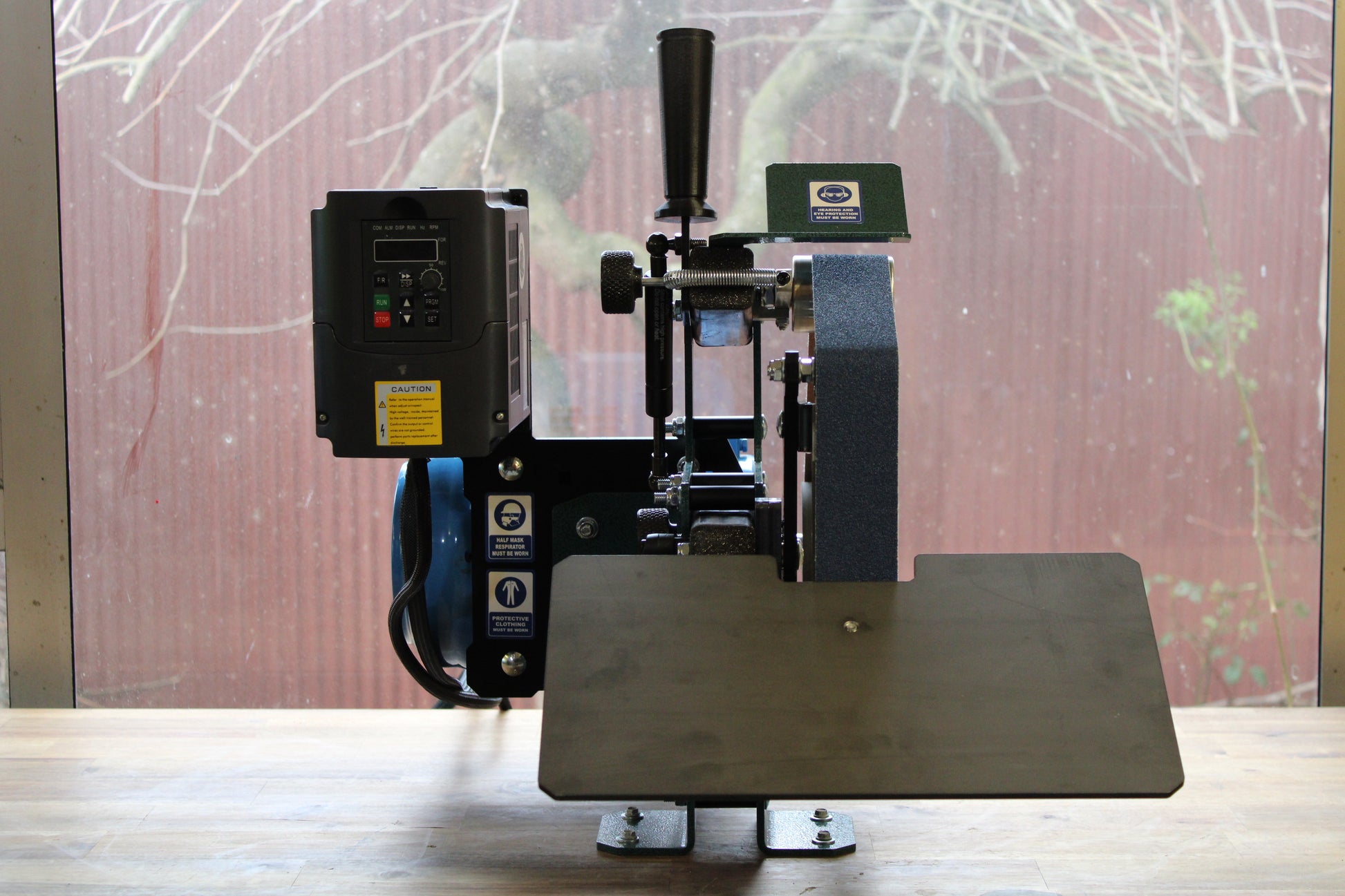

• Table Size: 145mm x 320mm
• Table Adjustment: Pivotable / Adjustable
• Backing Plate Length: 150mm
• Belt Tracking: Dual adjustment for forward and reverse grinding

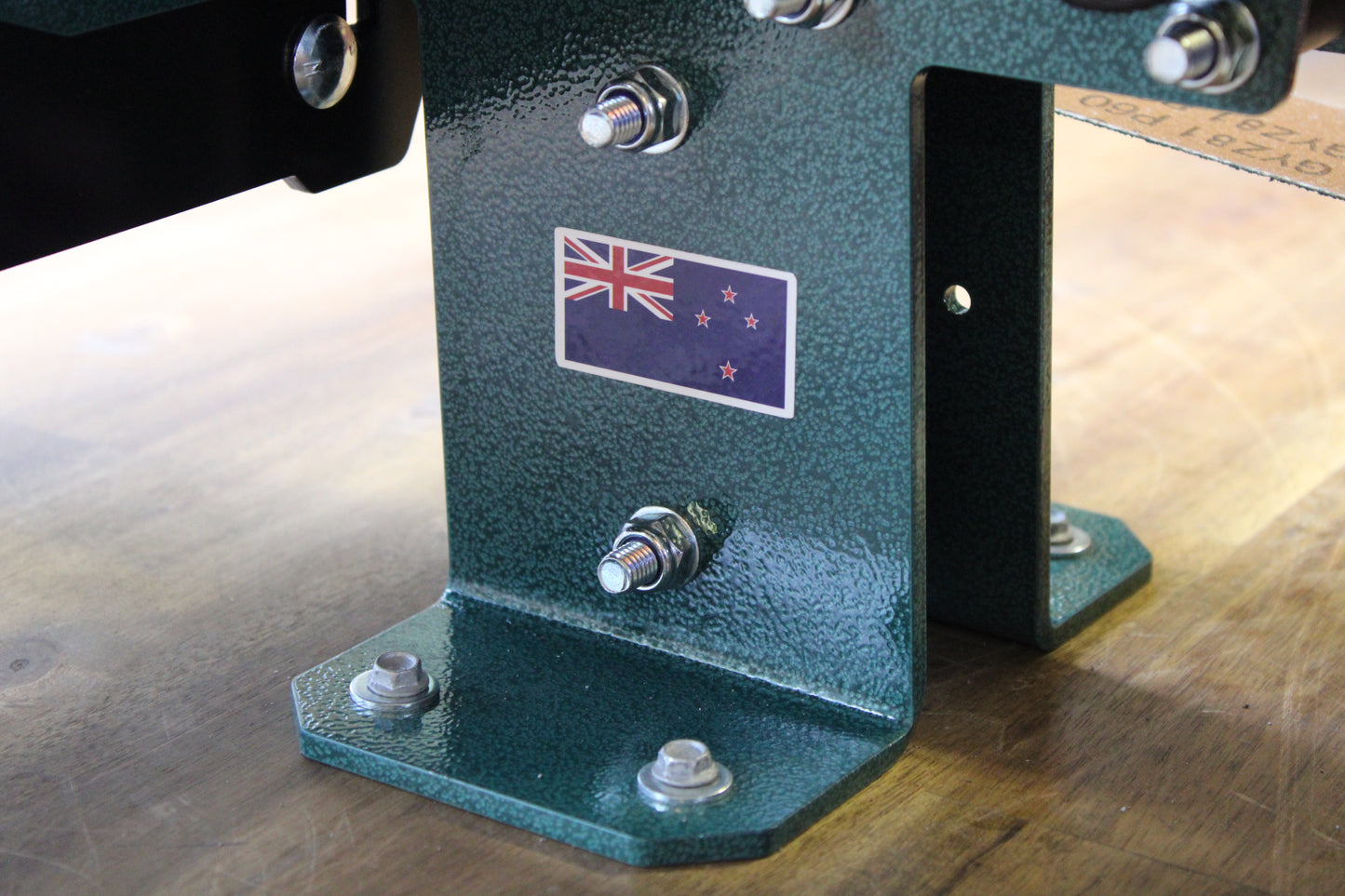

• Foot Mounting: 16mm holes with 100mm x 100mm hole centres (4x M16x50mm bolts included) designed to suit most welding tables
• Overall Dimensions: 350mm Wide x 450mm Long x 400mm High
• Weight: 23kg
• Brand: Haast Engineering
• Model: B1

Features:

• Forward and reverse grinding capability

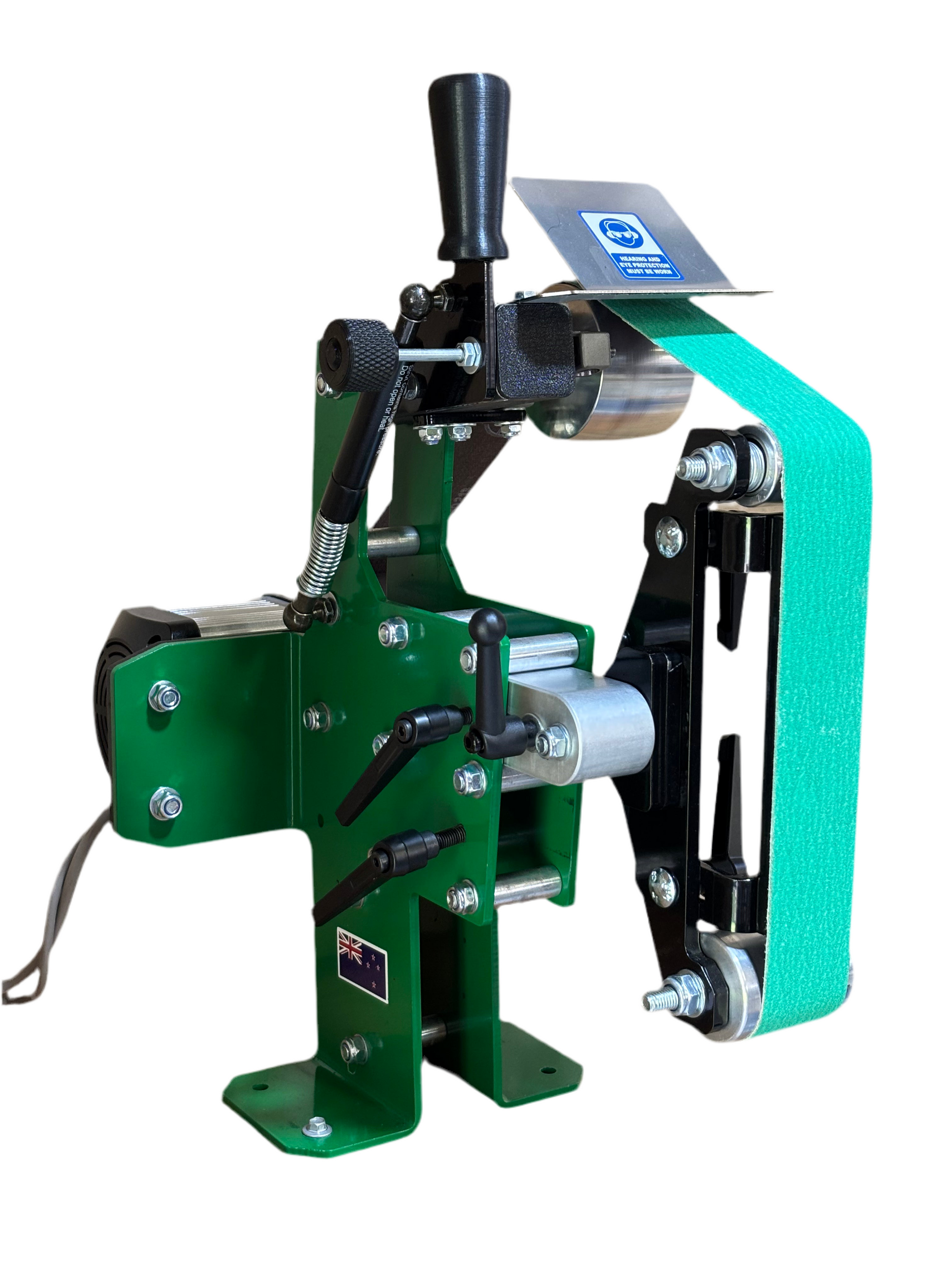

• Easy adjust swivel tooling arms
• Smooth belt tracking adjustment
• Large adjustable work rest for bevel grinding
• Suitable for knife bevels, chamfers, shaping, and finishing
• Spare parts available

PLEASE NOTE: These are currently built to order. Please allow up to 5 working days for manufacturing. Thank you for your understanding as we work towards reducing this time.
