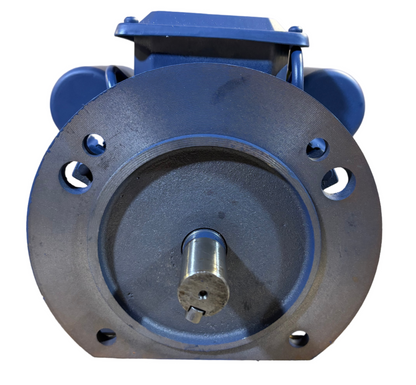

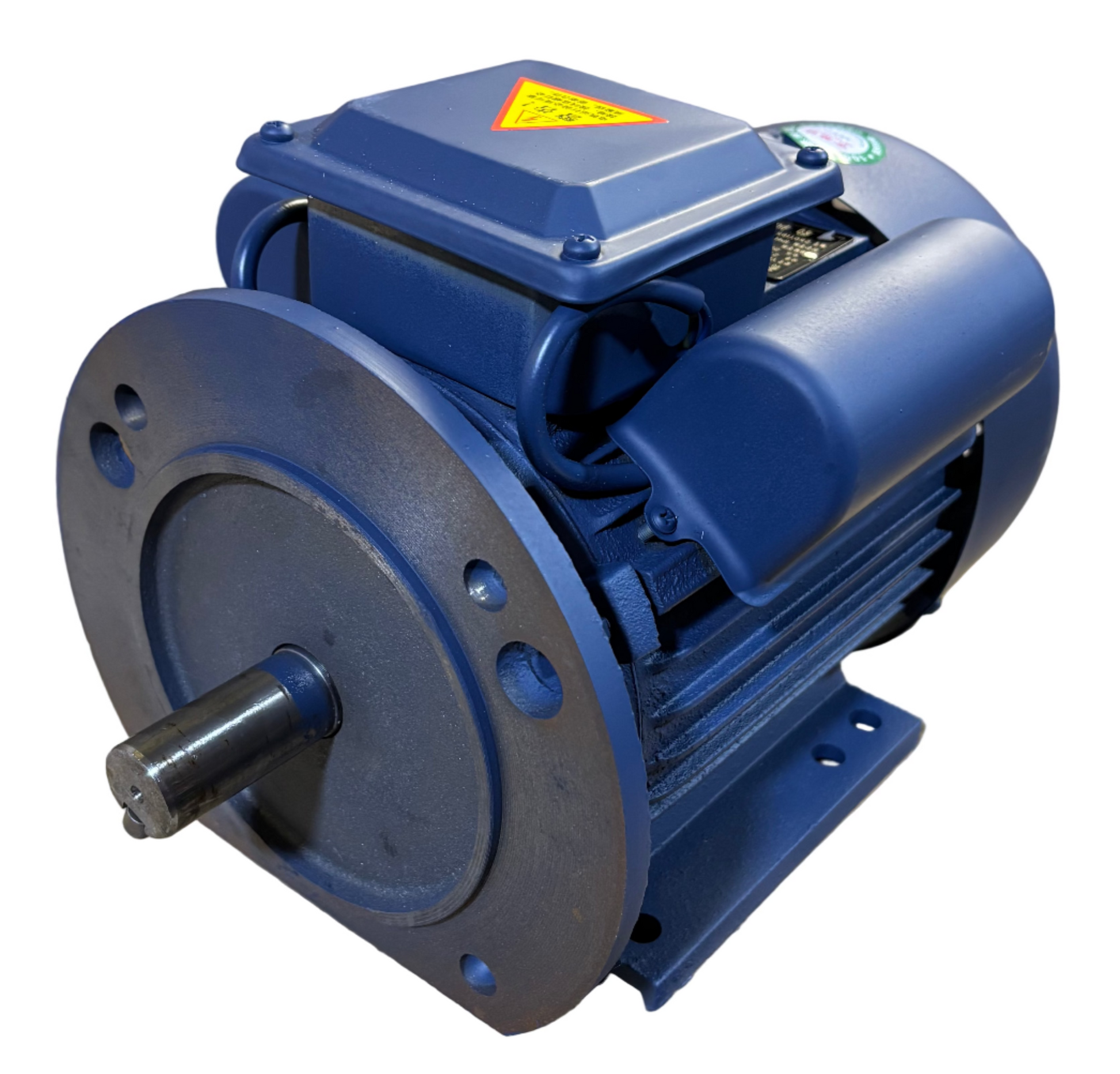

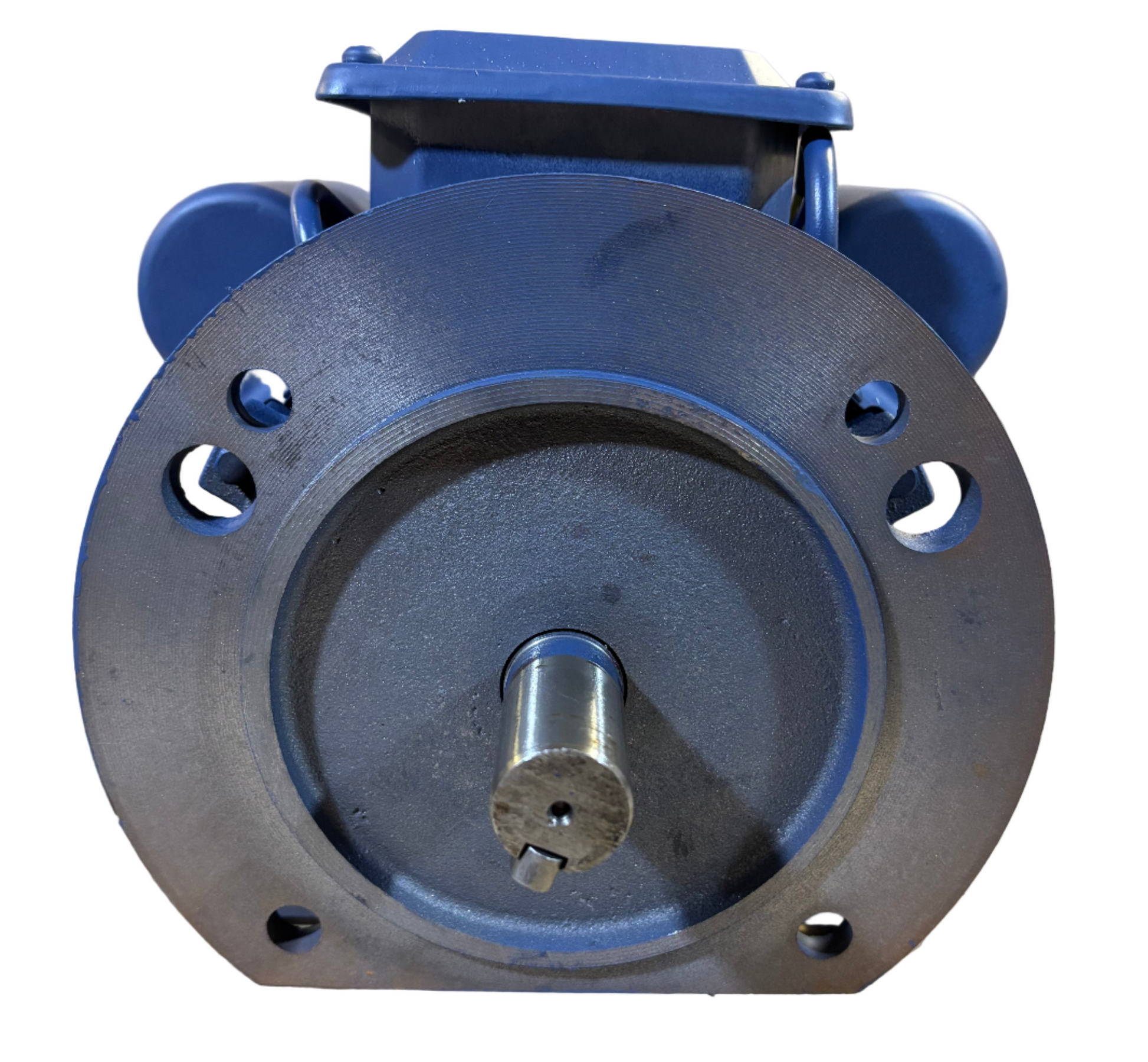

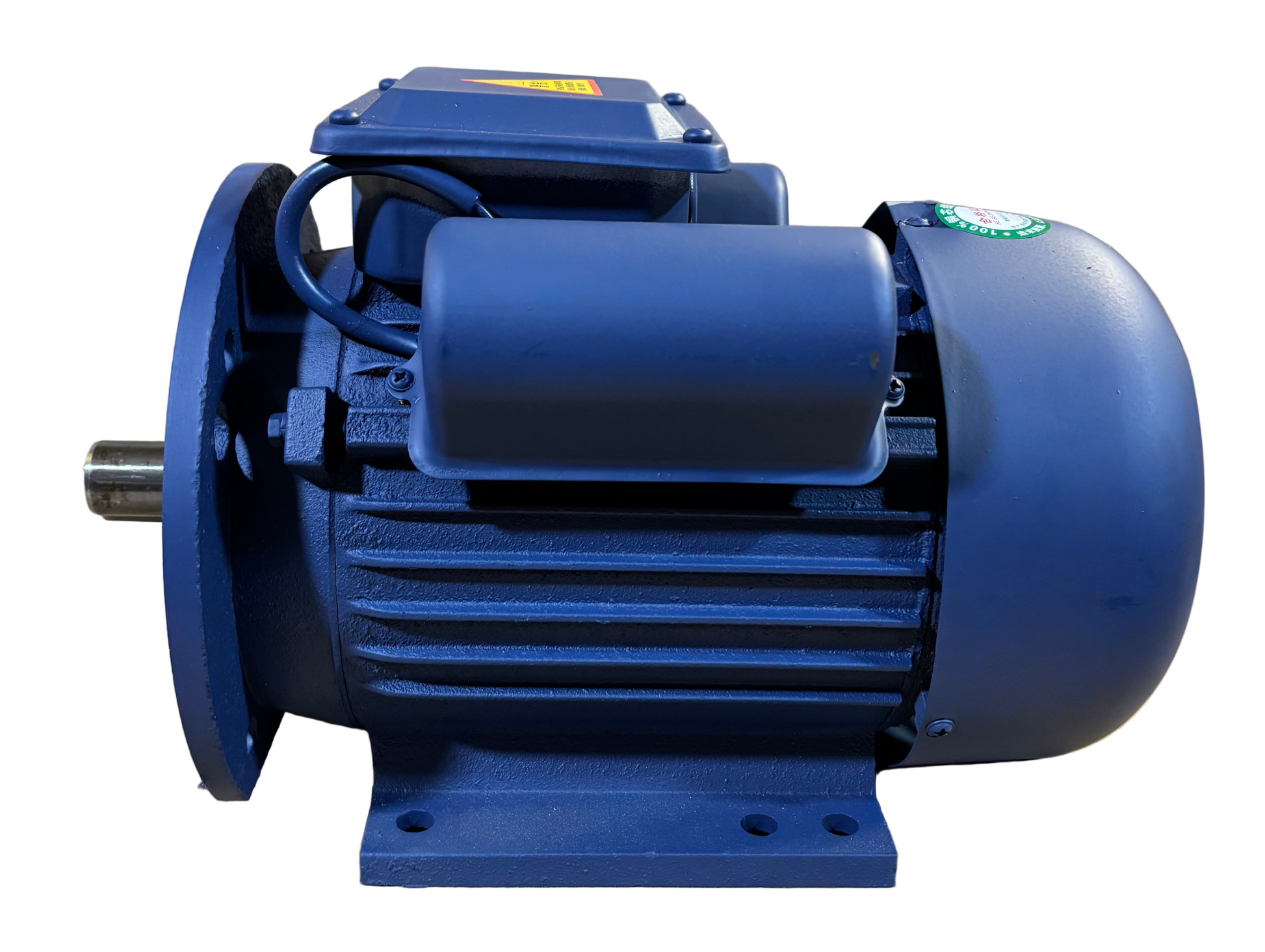

Single Phase Electric Motor - 2.2kW / 3HP – B35 Mount - 2800 RPM - Steel Body

High quality, industrial grade 2.2kW (3HP) single-phase electric motor with a durable steel body and B35 mount (Face flange & Foot mount). Running at 2800 RPM, it’s ideal for heavy-duty workshop and machinery applications. Compact design for easy installation and reliable performance. Most commonly used in car hoists. Ideal for swapping out the 3 phase motor to run your hoist on single phase. 2.2kW / 3HP and 1.5kW / 2HP available.

Specifications:

• Power Output: 2.2kW / 3HP
• Voltage: 240V Single Phase
• Frequency: 50Hz
• Speed: 2800 RPM (2 Pole)
• Max Current: 12.4A
• Mount Type: B35 Face flange & Foot mount
• Shaft Diameter: 24mm
• Shaft Length: 50mm
• Keyway Slot: 8mm
• Body Material: Steel
• Overall Body Size approximately: 340mm (L) x 210mm (W) x 230mm (H)
• Baseplate Size: 170mm (W) x 150mm (L)
• Face Flange Outer Diameter: 200mm
• Face Flange Location Ring Outer Diameter: 130mm
• Mounting Foot Hole Spacing: Front to Rear 100–125mm, Across 140mm
• Mounting Foot Hole size: 10mm diameter
• Face Flange Mounting Hole Pitch: 116x116mm
• Face Mounting Hole diameter: 12mm
• Phase: Single Phase
