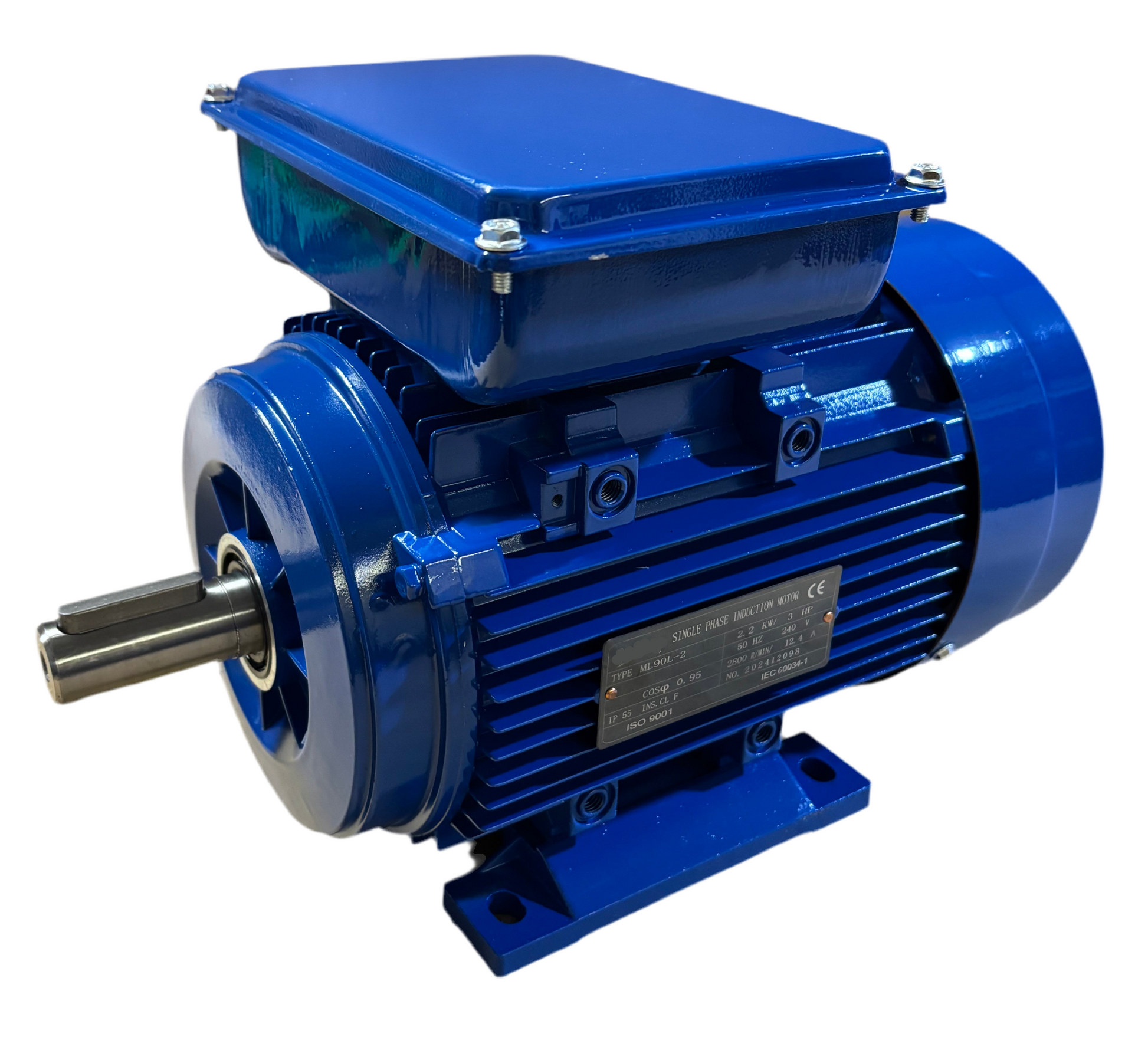

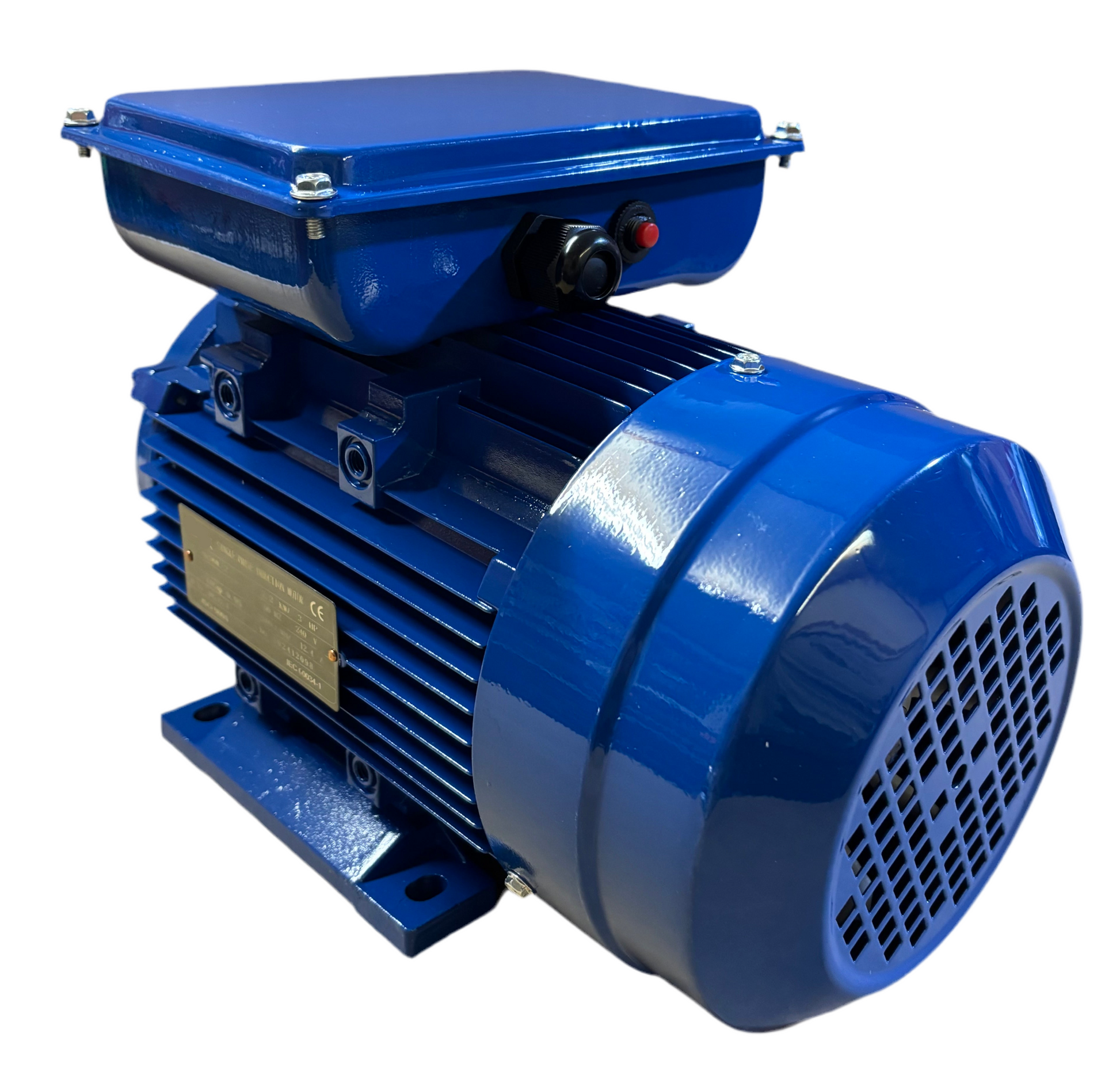

Single Phase Electric Motor - 2.2kW / 3HP – B3 Foot Mount - 2800 RPM - Aluminum Body

High quality, industrial grade 2.2kW (3HP) single-phase electric motor with a durable aluminum body and B3 foot mount. Running at 2800 RPM, it’s ideal for heavy-duty workshop and machinery applications. Compact design for easy installation and reliable performance.

Specifications:

• Power Output: 2.2kW / 3HP
• Voltage: 230V Single Phase
• Frequency: 50Hz
• Speed: 2800 RPM (2 Pole)
• Max Current: 12.4A
• Mount Type: B3 Foot Mount
• Shaft Diameter: 24mm
• Shaft Length: 50mm
• Keyway Slot: 8mm
• Body Material: Aluminum
• Overall Body Size: 300mm (L) x 200mm (W) x 225mm (H) - Dimensions include top terminal box, length including shaft is 350mm
• Baseplate Size: 152mm (W) x 174mm (L)
• Mounting Hole Spacing: Front to Rear 100–125mm, Across 140mm
• Phase: Single Phase
• IP55 rated (standard dust protected)
